Dimensions
5 HP
35 mm deep
Current Draw
30 mA +12V
0 mA -12V
0 mA 5V
Price
$145 Price in €

Module is available as a DIY project only.

This Module is currently available.

Probability trigger generator

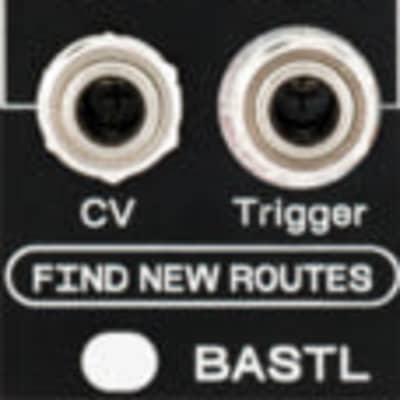

Kompas is a three-coordinate probabilistic pattern navigator. Each coordinate has a unique travelling pace and a dedicated trigger output. The amount of probability can be adjusted manually or by external voltages. Once a coordinate has been adjusted, a new pattern is generated and looped until the next change of direction.

This tool is the outcome of the environment we are in and is inspired by non-linear approach to music and life – don't build any expectations, choose your direction and discover new paths.

Unlike common probability operation, instead of filtering a pre-determined sequence, Kompas uses probability to generate new looping patterns based on the direction you choose.

Features

  • global clock and reset input
  • 3 x 32 step pattern generators with travelling algorithms
  • 3 CV inputs for coordinate modulation
  • 3 trigger outputs
  • 2, 5, 10ms selectable trigger length (via boot settings)
  • DIY and hacker friendly Arduino programmable hardware
  • open-source schematics and code
  • includes a printed fanzine with navigation topics
  • available also as a DIY soldering and coding workshop

https://bastl-instruments.com/eurorack/modules/kompas
