Dimensions
6 HP
34 mm deep
Current Draw
15 mA +12V
15 mA -12V
0 mA 5V
Price
$220 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Multimode filter with trigger

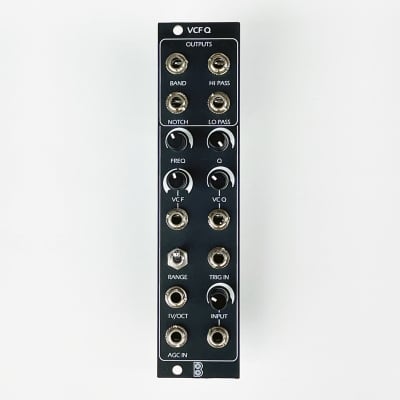

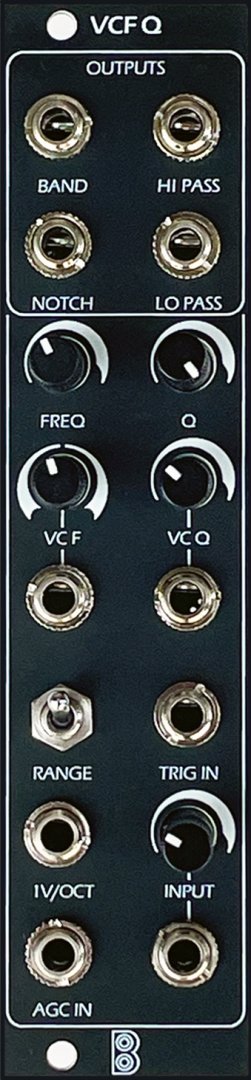

The Bananalogue VCFQ is a eurorack multimode filter module, based on 1970s analogue design philosophies.

The module has four outputs: HI PASS, LO PASS, NOTCH, and BANDPASS. Two inputs, one with attenuator that can be overdriven and one with "auto-gain compensation" - this input uses a VCA to duck the signal to prevent distortion when the Q increases. TRIG IN allows a pulse to ring the filter for percussive effects. RANGE switches the response from audio to subaudio, allowing for processing of CV signals.

Cutoff frequency has both an attenuverter input and a 1V/OCT input (not thermally compensated). Resonance has an attenuator input as well (this is where the VCFQ gets its name from).

https://reverb.com/item/91636195-bananalogue-vcfq-brand-new-serge-multimode-filter-eurorack-module


submitted Aug 1st, 00:10 by bananalogue | last Change Aug 1st, 00:11 by bananalogue

2 Users are observing this
