Available as an assembled Module and as a DIY project.
This Module is currently available.
Specs are approved by the manufacturerPlayable PT2399 delay module

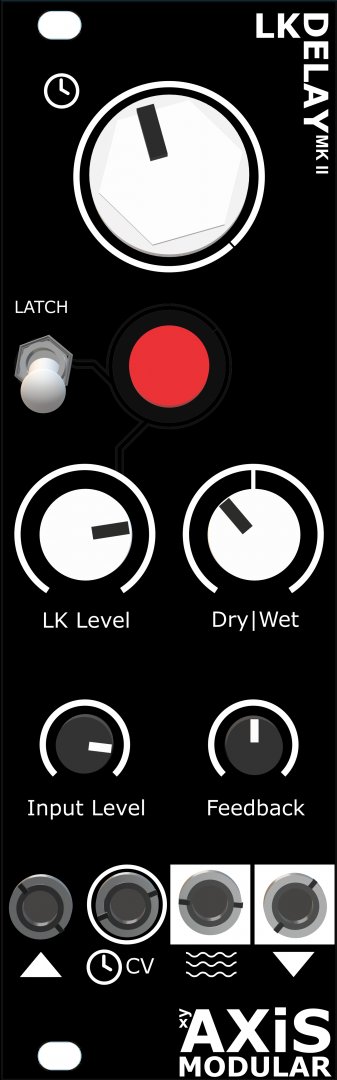

The LKDELAY MKII is a highly playable 8HP digital delay module using the infamous PT2399 delay chip (commonly found in guitar pedals).
The LKDELAY MKII features CV control over the delay time via the clock input and a momentary LOCK button and newly added latch switch, which when pressed or engaged delay feedback will become locked. Lowering the LK Level can produce some wonderful effects such as a 'fake' reverb or chorus type sound. This delay really comes to life when playing the controls. Combine holding the lock button with moving the TIME control for interesting evolving and glitchy textures.
Also new is the added Wet Out, which allows you to take the wet effected output out to your other modules for further processing. Or, why not plug the dry out to a left/right channel and take the Wet to the opposite for a 'stereo' delay??
The LKDELAY MKII now also comes in two different flavours!!
Black - 30ms - 400ms delay time. Will give a higher quality delay signal.
White - 30ms - 800ms delay time. Gives you a slower delay but lower quality 'grungy' delay which can be quite a bit noisier than the black version.
Product is made from Lead Free FR4 PCB and components.
Module width - 8hp
Current Draw - +12v = 27ma
-12v = 7ma
Depth - 25mm without cable.
