Dimensions
28 HP
32 mm deep
Current Draw
160 mA +12V
160 mA -12V
0 mA 5V
Price
$1,210 Price in €

This Module is currently available.

Specs are approved by the manufacturer

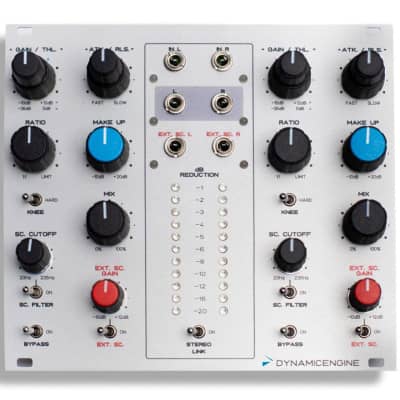

Hi-quality Eurorack dual mono compressor-limiter with stereo link

SYSTEM
- 2 mono compressors
- balanced inputs w/ gain up to 12 dB
- threshold w/ 36 dB range
- variable attack / release
- ratio from 1:1 to limit
- hard and soft knee
- make up gain up to 20 dB
- parallel compression
- side-chain hi-pass filter from 20 Hz to 235 Hz
- stereo link
- independent bypass
- external side-chain inputs w/ gain up to 12 dB
- outputs w/ ground-cancelling circuitry

ENGINEERING
- Triple VCA compression
- Top quality VCA (THAT Corps.)
- Modern audio grade op amps
- Thin-film resistors
- Wima & Panasonic caps
- 4 layer PCB (designed for best EMI/EMC)
- Reverse powering protection

PHYSICAL
- 28 HP
- Skiff friendly (32 mm behind the panel)
- Eurorack format

Eurorack Hi-Quality Equipment
