Small skiff friendly utility collection

Ⓜ️ Hop in, hop out, change line, cross the platform to get in a new carriage.

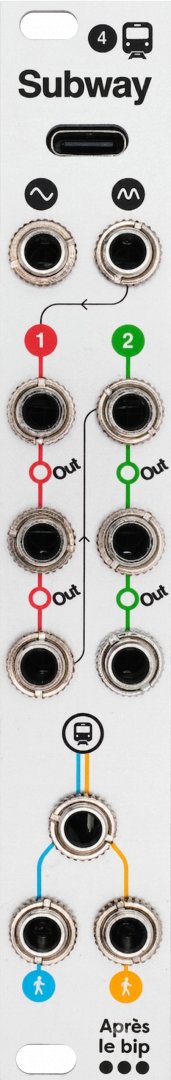

This is Subway. A utility collection cleverly normalized letting you choose the path you need for your signal, at any time. The Subway 4 is a collection of utilities thought for a small skiff friendly case, in 4 HP and 22 mm deep.

An active full wave rectifier allows you to switch from any bipolar source to unipolar, with no diode drop and no dead zone. Its output is normalized to the red line, so that you have 2 copies without using a patch cable. Additionally, since the red line is normalized to the green line, you eventually have direct access to 4 copies of the full rectified source.

The red and the green lines are passive multiple. If you need to duplicate a trigger, a modulation source or an audio source, you have 4 copies of 1 source when nothing is patched, or 2 copies of 2 sources when you break the chain by patching the green line.

The last utility is a unity mixer. Patch 2 audio sources or any CV and the output will give you an average sum of these sources.

And since it's always missing: a USBC 5 volts power source is provided for your light, your smartphone or even a minifan to cool you down when you perform under the sun!

• Active full wave rectifier
• Two 1 to 2 passive multiple or 1 to 4
• Unity 2 channels mixer
• USB-C power socket to power external devices like a light
• Some clever normalization

Get in on our website
Try it free in VCV Rack

https://www.apreslebipmodular.com/produit/subway-4
