Dimensions
10 HP
40 mm deep
Current Draw
135 mA +12V
120 mA -12V
0 mA 5V
Price
$375 Price in €

This Module is currently available.

Specs are approved by the manufacturer

All analogue VCO with 8 simulatenously available waveforms

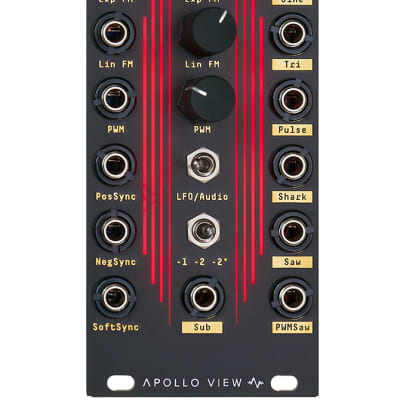

An all analogue triangle core VCO / LFO / Ultra-LFO based on 3340 VCO IC, which utilises the full potential of the 3340’s capabilities and adds additional wave-shaped outputs.
'ALL' the oscillator waveforms in 10 HP - No ordinary 3340 VCO!

Allscillator is extremely stable across all temperatures and has a wide-ranging (0.0011Hz – 20kHz) frequency. 1V/oct control extends over +10 octaves.

Eight simultaneously available waveforms:

• Square Sine
• Sine
• Tri
• Pulse (PWM)
• Sharktooth
• Saw
• PWM Saw
• Sub (-1 Octave, -2 Octave and -2* Octave Pulse)

Sub octave is square/pulse selectable via a switch: -1 Octave, -2 Octave and -2* Octave Pulse (25% high, 75% low duty cycle)

1V/oct control extends over +10 octaves. Further frequency modulation is possible through independent Exponential Frequency Modulation and Linear Frequency Modulation. Each FM input has an attenuator for controlling the range of the modulation.

Three types of independent oscillator sync are available for locking the pitch to another master oscillator and creating new harmonically rich waveform shapes at the outputs.
• Positive edge Hard Sync
• Negative edge Hard Sync
• Soft sync (from a negative edge)

The oscillator range can be switched between Audio frequency, LFO frequency and Ultra LFO.
• Audio - 23Hz to +20kHz
• LFO - 0.67Hz (1.5 seconds) - 45Hz
• Ultra LFO - 15mins to 12 seconds

SPECIFICATION
• 10HP
• 40mm depth
• Reverse polarity protected
• +12V 135mA
• -12V 120mA

https://www.apolloviewmodular.com/allscillator
