30 HP
115 mm deep
Current Draw
70 mA +12V
70 mA -12V
360 mA 5V
$661 Price in €

This Module is currently available.

VC Sampler/Delay

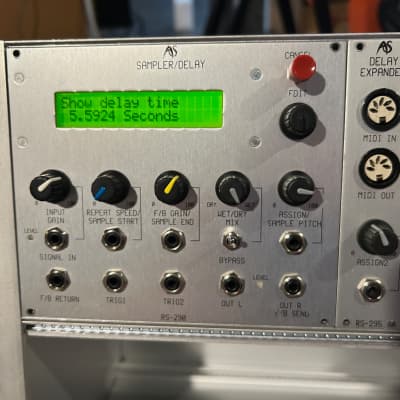

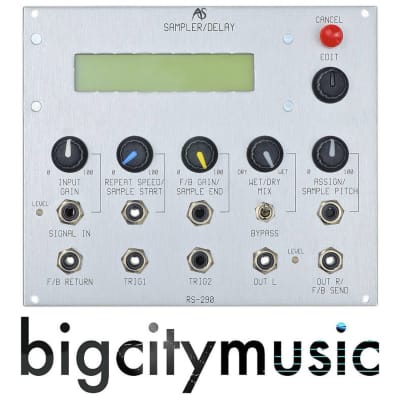

Analogue Systems RS-290 Sampler/Delay is a voltage controlled delay and sampler module. Stunning 46.9khz, 16bit, 5.5 second long stereo echo and delay with user assignable control of MIDI, analogue clocks, triggers, and CV Calculates the correct delay time to the incoming tempo.

50 user memories to create personal comb filter, flanging, chorus, pitch shifting and echo programmes. Can recreate bbd and tape echo effects and up to 29 seconds available in mono mode. 2 modes of delay are available Tape Delay and the recently developed Digital Delay. In sample mode the user can voltage control and trigger the source material in ways unavailable until now.

Using the RS295 optional expander samples can be dumped and retrieved using Sys Ex dumps.


Ø 4.67 (6 Votes) Average Rating
submitted Oct 22nd 2012, 19:26 by kevvv | last Change Apr 23rd 2018, 00:23 by xtront

8 Users are observing this
