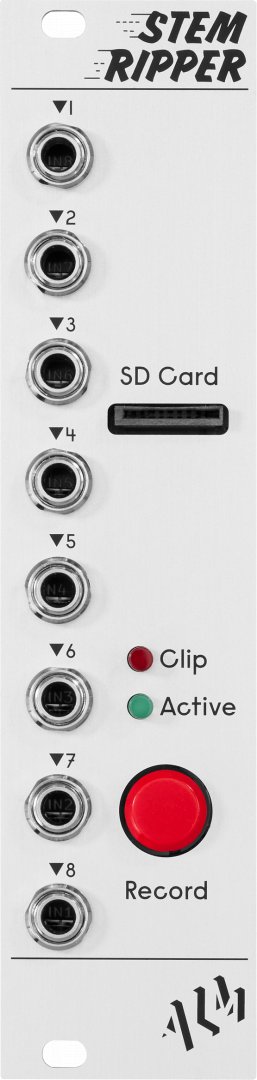

Stem Ripper

ALM Busy Circuits

Manufacturer Page

8 Channel Audio Recorder

The Stem Ripper is a compact 8 channel audio recorder designed for immediate full patch recording without the need for external hardware. Capture all audio stems of a patch with ease.

Patch stems are recorded directly to a micro SD card which can then be easily transferred to a computer to mix, edit or archive patches. Each input is recorded as an individual track in a 16bit 44.1kHz multichannel date stamped WAV file. Record time is limited only by SD card size. Two additional tracks within the output WAV contain a configurable stereo mix down of the inputs.

The module has large 20Vpp per input headroom with LED clip indication if exceeded.

An optional 2HP ‘Thru’ output expander duplicates the 8 inputs to a row of unbuffered outputs, eliminating the potential need for stacking patch cables at the expense of more case real estate.

A suitable 64Gb SD card is included with the unit.

Simple quick full patch audio recording.
8 independent 16 bit 44.1kHz audio tracks.
Direct recording to a micro SD card with recording time limited only by SD card size.
Multichannel WAV file output for easy drag and drop functionality.
Additional fixed stereo mix tracks with configurable levels.
Accurate automatic date stamping of recordings with battery backed clock.
20 Vpp headroom per input with LEDs for clip indication and recording status.
Optional ’Thru’ expander that allows signal to pass unbuffered through the Stem Ripper.
Up to 1Tb sized SD cards supported.
Skiff friendly with reverse power protection.
2 Year Warranty.
Made in England.
