Dimensions
4 HP
32 mm deep
Current Draw
12 mA +12V
12 mA -12V
20 mA 5V
Price
$122 Price in €

This Module is currently available.

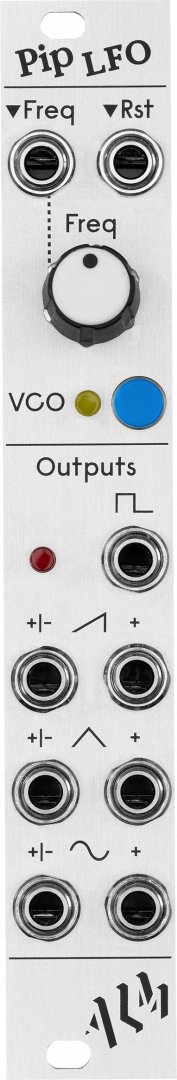

Compact Analogue LFO & VCO

The ‘Pip LFO’ is a compact 4HP all analogue low frequency oscillator with a wide frequency range, voltage control, numerous outputs, reset input and a VCO mode.

LFO speed is set via a manual control and voltage control input. There is a unipolar square wave output along with both bipolar and uni-polar triangle, saw and sine waveform outputs. When VCO mode is activated, the frequency jumps to audio range and will track V/Oct for approx 5 octaves. A reset input allows the LFO waveform cycle to be reset and produces hard sync functionality in VCO mode.

  • Manual and CV control over LFO frequency.
  • Frequency range from approx 0.01Hz to 20Khz+
  • Square, Triangle, Saw and Sine simultaneous waveform outputs.
  • Uni and Bipolar outputs.
  • Audible frequency ‘VCO’ mode with V/Octave tracking.
  • LED frequency indication.
  • External reset/sync input.
  • Skiff friendly with reverse power protection.
  • 2 Year Warranty.
  • Made in England.
