8 HP
22 mm deep
Current Draw
80 mA +12V
80 mA -12V
0 mA 5V
$275 Price in €

This Module is discontinued.

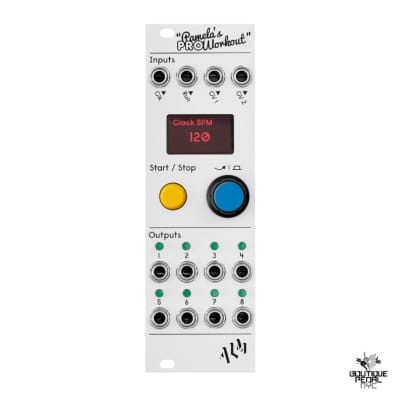

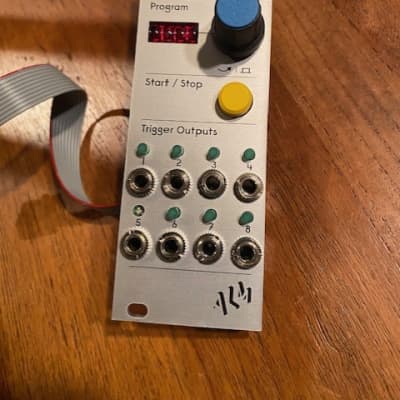

ALM001 - Programmable clock source

From ALM: 'Pamela's Workout' is a compact programmable clock source for your Eurorack modular synthesizer system. It provides 8 highly editable trigger outputs, all correlated to a direct and voltage controlled BPM based clock.
Features include;

BPM based clock with rates 25-300BPM.
8 clocked Trigger outputs each with independent adjustable;

    Clock divisors and multipliers
    32 separate values from from /512 to *48
    Triplets, Evens, Odds etc
    Pulse width
    Random skip
    Delay and delay division (for complex shuffle)
    Beat Offset

Voltage and direct control of clock stop/start and reset
Voltage control of clock rate.
Sync to an external clock input at 24, 16, 12, 8, 4, or 1 PQN.
Simple realtime user interface with vintage LED display.
Non-volatile - settings remembered between power cycles
Easy firmware upgrades with no special hardware just an audio out.
Provides DIN Sync input & output with simple adapter.
Skiff friendly.
Made in England.
