Dimensions
6 HP
32 mm deep
Current Draw
40 mA +12V
15 mA -12V
? mA 5V
Price
$174 Price in €

This Module is currently available.

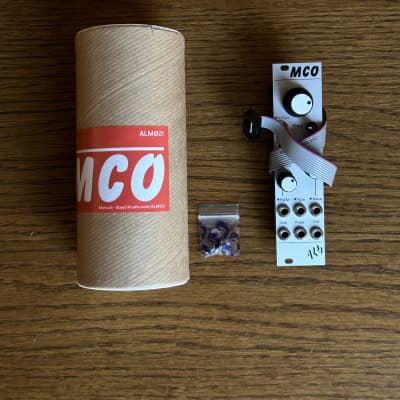

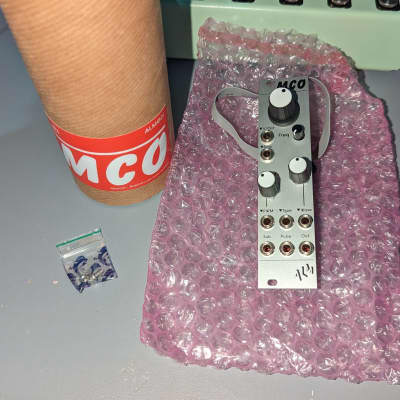

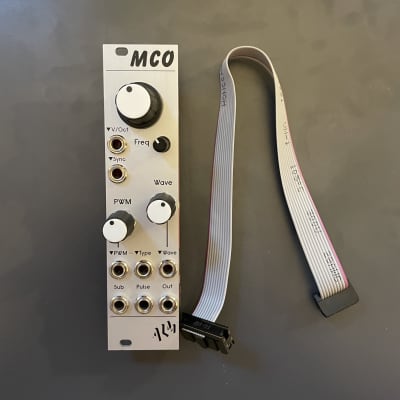

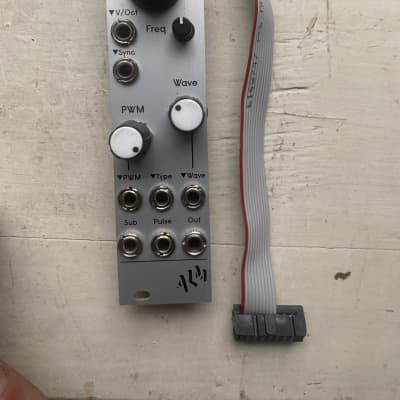

ALM021 - Compact Digital VCO

The ‘MCO’ is a compact digital oscillator. It features a main ‘morphing’ wavetable output, an additional copy of this output with overlaid variable pulse width segments (ala Alpha Juno style saw wave pwm) and a sub square wave output an octave down to the main output. The waveform and pulse segment width and be both directly and voltage controlled. The pulse segment distribution can also be voltage controlled via the ‘type’ input.

Expect an early 90s slightly crunchy digital type sound (ala Ensoniq, Kawai KX synths) rather than something striving for perfect analog emulation.

  • A lot of sound in 6hp
  • 3 Outputs; wavetable, PWM’d wavetable & sub.
  • 10 morphing waveforms with noise, staple and complex forms
  • Voltage control of frequency, waveshape, pulse width and distribution.
  • Hard sync input.
  • Reverse polarity protection.
  • Skiff friendly.
  • Designed and Made in the UK.

http://busycircuits.com/alm021/


Ø 4.40 (20 Votes) Average Rating
submitted Nov 14th 2018, 14:30 by isynx | last Change Mar 21st, 10:25 by FG-Modular

35 Users are observing this
