Dimensions
20 HP
25 mm deep
Current Draw
215 mA +12V
150 mA -12V
? mA 5V
Price
$224 Price in €

This Module is currently available.

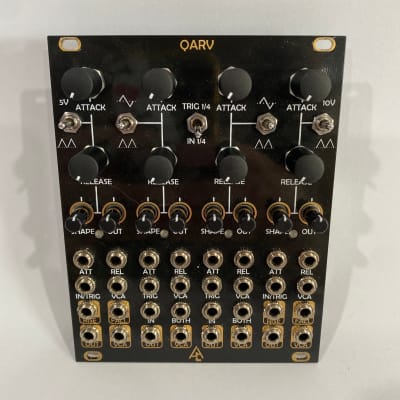

Quad Attack, Release & VCA

Four channels of function generator, oscillator, slew limiter, envelope, and VCAs. This module brings the ultimate in flexibility as it can be used as a standalone synth voice, a massive amount of modulation, or a four channel envelope generator w/ mixer. We believe this makes QARV a great first module and a great addition to the largest of systems.

All four channels have the following features:
* Uni-polar oscillator mode
* Attack and release time control via potentiometer and via input jack
* Shape control that controls shape for both attack and release
* Output attenuverter
* VCAs that normal to each subsequent channel (CH1 -> CH2, etc.). So you can get a mix of all four channels out of the CH4 VCA output (unless you patch a VCA output from an earlier channel)

Channels 1 & 4
* Voltage source (CH1 - 5V & CH4 - 10V)
* CH1 & CH4 can be switched between IN (slew mode) and TRIG (envelope) mode
* RISE and FALL gates. You can use our G&T module to turn these gates into triggers.

Channels 2 & 3:
* Bi-polar oscillator mode
* Dedicated IN and TRIG jacks (helpful for adding offset to a triggered ENV)
* BOTH input jack to simplify patching both the attack and release (also inverts the input to give more standard pitch tracking of higher voltage equals higher pitch)

https://afterlateraudio.com/products/qarv


Ø 4.25 (8 Votes) Average Rating
submitted Jan 11th 2022, 04:43 by Acetate | last Change Mar 27th 2023, 18:45 by FG-Modular
