Dimensions
20 HP
55 mm deep
Current Draw
340 mA +12V
250 mA -12V
0 mA 5V
Price
$599 Price in €

This Module is currently available.

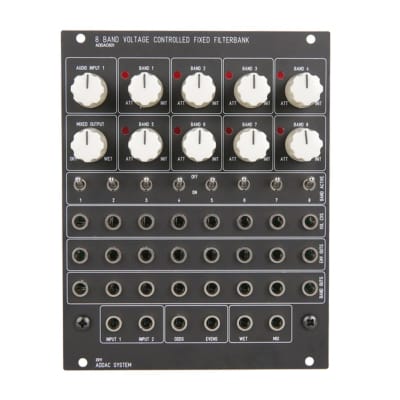

ADDAC601 Analog Filterbank will have you shaping the spectrum of your sound "tout de suite".

With its 8 fixed frequencies, this very special filterbank has two additional features that you won't find anywhere else. Each of the 8 band volumes can be controlled through a linear high performance VCA, which adds great dynamics and new abilities to the art of filtering. Additionally this module also doubles as an envelope follower, with a dedicated CV output per band.

It features numerous output options: you can select between individual bands, the full processed sound, a wet/dry signal and even choose between odd or even frequencies.

Plus you can add up to two different signals, which are mixed internally by the ADDAC601 inputs.

http://addacsystem.com/product/addac600-series/addac601-vc-fixed-filterbank


Ø 4.76 (21 Votes) Average Rating
submitted Oct 25th 2012, 17:45 by wiggler1631 | last Change Jan 19th, 01:36 by blingistan

46 Users are observing this
