Dimensions
2 HP
42 mm deep
Current Draw
20 mA +12V
20 mA -12V
0 mA 5V
Price
$99 Price in €

This Module is currently available.

Specs are approved by the manufacturer

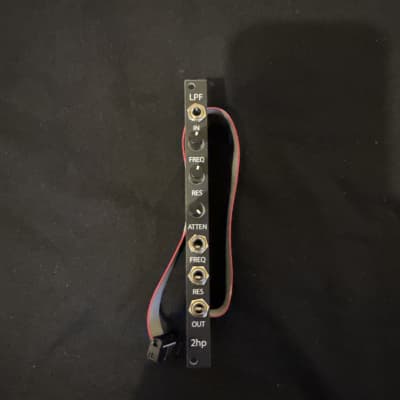

Low-Pass Filter

LPF is a four-pole, voltage controlled low-pass filter. Its 24 dB per octave slope and OTA topology provide a smooth, buttery character. Resonance can be pushed to self oscillation, turning it into a sine wave VCO with accurate 1V/oct tracking across four octaves.

In addition, CV over resonance gives dynamic sound shaping possibilities under voltage control. Hit the slope with LPF.

www.twohp.com/modules/lpf


Ø 3.75 (4 Votes) Average Rating
submitted Apr 14th 2017, 17:47 by twohp | last Change Feb 21st 2019, 22:17 by twohp

10 Users are observing this
