Dimensions
18 HP
32 mm deep
Current Draw
400 mA +12V
0 mA -12V
0 mA 5V
Price
$439 Price in €

This Module is currently available.

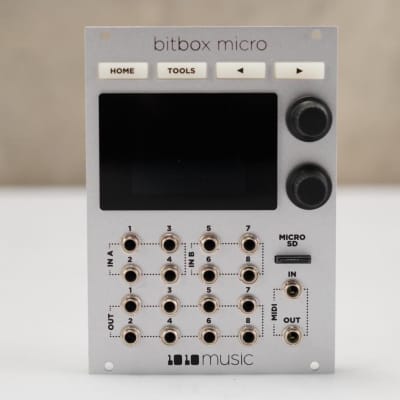

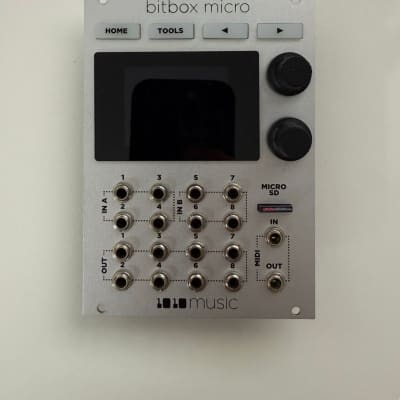

Compact Sampling Module

Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI.
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping. Save your configurations to multiple presets for later reuse.

Inputs and outputs are DC coupled so you can record and play out CV signals.

Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.

Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card

https://1010music.com/product/bitbox-micro


Ø 4.39 (46 Votes) Average Rating
submitted Apr 25th 2020, 15:16 by scragz | last Change Nov 11th, 10:35 by FG-Modular
