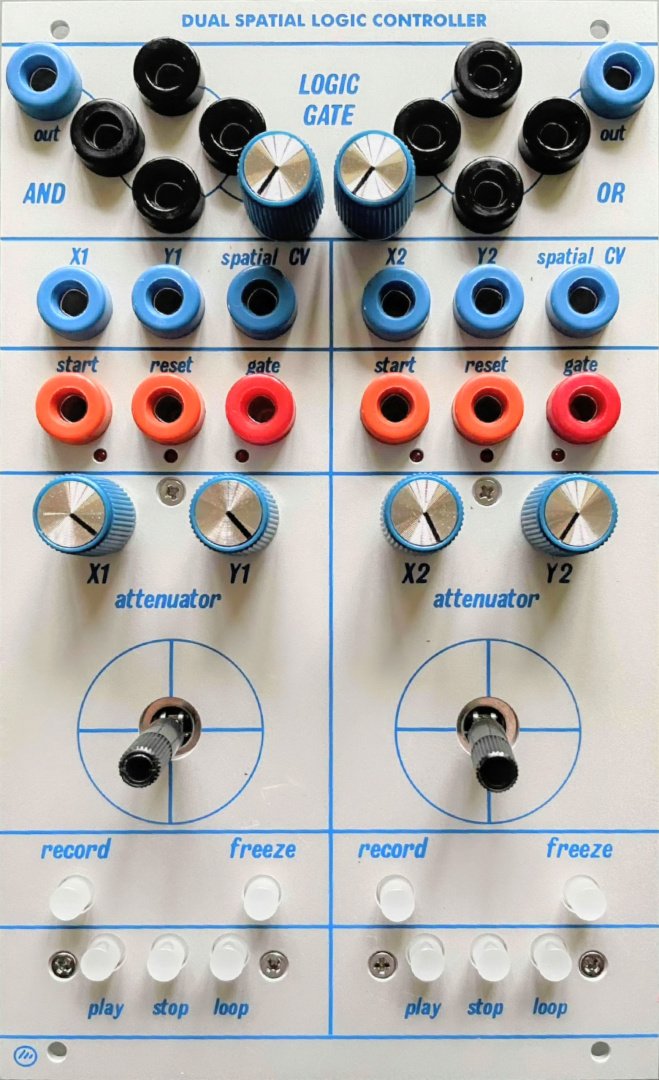

A compact dual joystick module with recording function.
The module can record the joystick movement to a length of about one minute. The sequence remains stored in the battery-backed RAM after switching off. When playing back the sequence, the playback speed can be manipulated.
There is a FREEZE function to hold the current joystick position. Also there is an external reset input. In addition, when moving outside the center position, a GATE is set and an additional positive CV voltage (summation of X and Y) is output in dependence. A GATE / START input is used for resetting or recording in sync.
The ranges of the X / Y output voltages is unipolar from approx. 0 to + 10v. Both channels X and Y have a passive attenuator potentiometer, so that the voltage range can also be set lower.
On top you have a logic AND + OR gate circuit.
The OR circuit is used to cancel out the voltage drop of the cv input.
The AND circuit is used to compensate the voltage drop across the cv input.
Analog AND/OR is combining two (or more) continuous signals, then outputting their (continuous) minimum/maximum.
Great option to combine multiple modulation sources.
Analog AND/OR behaves exactly like digital/discrete AND/OR when fed gates, but on top of that allows for combining signals into a continuous output.
