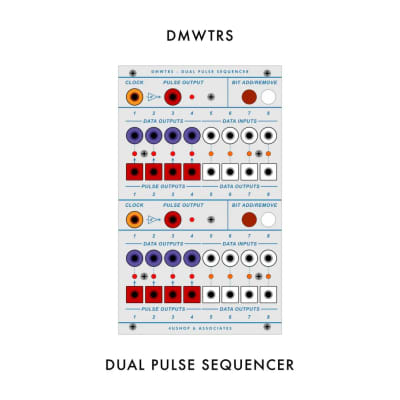

DMWTRS

dual pulse sequencer

DMWTRS stands for "Dual Man With The Red Steam" and it is
based on the sequencer part of the amazing "Plumbutter".
It is a shift register based pulse sequencer, with a clock input, 4 pulse outputs, 8 data outputs and 4 data inputs.
Patching a data output to a data input turns the shift register's output back to it's input, so the sequence is looped, also, this is how you can set the length of the sequence.

The concept/idea is based on Peter Blasser's amazing work.

Features:

• clock input accepts literally any kind of clock or gate
• clock input is converted to pulse, to further use in the system
• 4 pulse outputs on red square banana jacks
• 4 data outputs on white square banana jacks and 4 on violet bananas
• 4 data inputs on white banana jacks
• data inputs accepts (max.) 0-15V voltages
• data outputs are standard 0-15V digital voltages
• push buttons to add (red) or remove (white) bits from the stream
• compatible with 100, 200 and 200e systems
• the modules does not produce (or even use) negative voltages
• black & white printed manual (3 pages...) included
• hand-built, hand numbered
