Offer Details

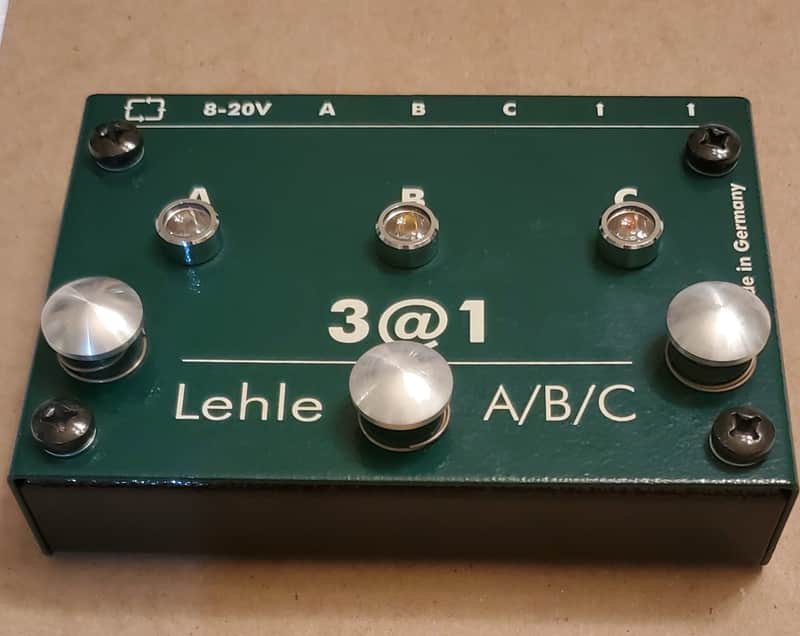

The Lehle 3@1 SGoS (Second Generation of Switching) is a premium, programmable instrument switcher manufactured with elite German engineering. It allows musicians to seamlessly connect up to three separate instruments and route them to an amplifier or mixer without audio degradation, popping, or cable swapping.

Item Condition & Inclusions

• Condition: Mint (Shows absolutely no signs of wear, blemishes, or cosmetic flaws)
• Packaging: Includes original retail box and factory packaging

Key Features

• Zero Audio Loss & Hum-Free: Signals from active, passive, piezo, or line-level sound sources pass through intact. Grounding is managed flawlessly to eliminate unwanted ground loops.
• Gold-Plated Relay Switching: Uses premium gold-plated contacts paired with integrated pop/click suppression for entirely silent onstage switching.
• Independent Level Matching: Inputs A and B feature small trim potentiometers, letting you attenuate louder inputs to perfectly match the level of your baseline instrument on channel C.
• True Stereo Capabilities: The internal signal path, all inputs, and both outputs are fully stereo. This makes it equally perfect for guitars, stereo keyboards, preamps, and synthesizers.
• MIDI Programmable & Expandable: Fully capable of receiving MIDI program change commands. It can also be linked to other Lehle SGoS pedals using a standard TRS patch cable to synchronize setups.

Operational Modes

1. Mode 1 (Standard): Straightforward interactive operation ("what you see is what you get") to choose a single channel.
2. Mode 2 (Preset): Allows custom combinations of inputs and outputs to be saved directly to the footswitches for instantaneous recall.
3. Mode 3 (MIDI Master): Configures the unit to broadcast MIDI program change commands outwards to control peripheral gear.

Technical Specifications

• Inputs: 3 x 1/4" TRS (Stereo)
• Outputs: 2 x 1/4" TRS (Output 1 to main destination, Output 2 for a tuner, second amp, or mixing desk)
• Power Requirements: 8–20V DC center-negative / 97 mA minimum power consumption
• Chassis Construction: Heavy-duty, robust metal housing designed to withstand rigorous touring
• Dimensions: 4.3" H x 6.1" W x 4.0" D (10.3 cm x 15.5 cm x 4.3 cm)
• Weight: 1.41 lbs (640 g)
