Offer Details

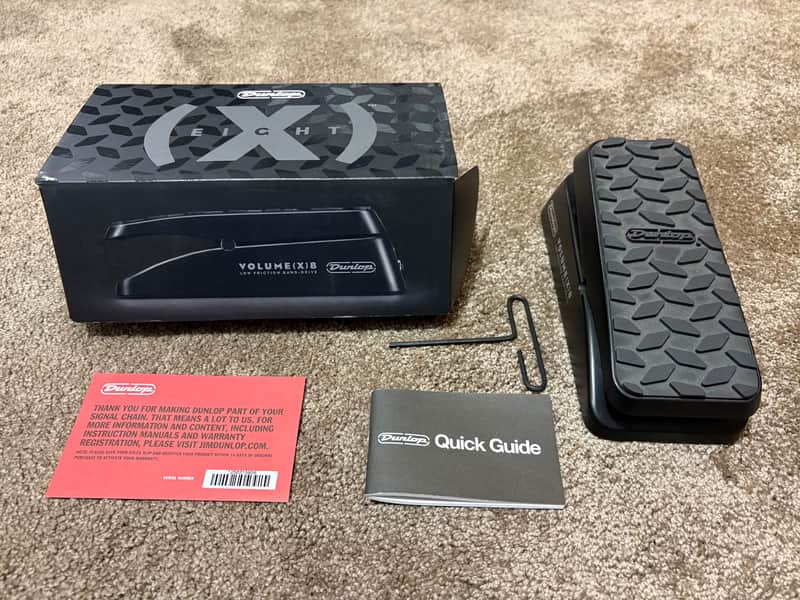

The Dunlop Volume (X) 8 (DVP5) is a compact, passive volume and expression pedal designed to save valuable pedalboard space without sacrificing control. It features an 8-inch housing with top-mounted jacks, a durable low-friction band-drive, and adjustable rocker tension. [1, 2, 3]Core SpecificationsPedal Type: Volume and ExpressionOperation: Passive (requires no batteries or power supply)Dimensions: 8" (Depth) × 4" (Width) × 3" (Height) approximately (203 \times 102 \times 76) mmWeight: ~2 lbs (0.94 kg) to 0.95 kgPotentiometer Resistance:Volume mode: (250\text{ k}\Omega)Expression mode: (10\text{ k}\Omega)Chassis Material: Rugged metal housing with a non-slip rubber tread [1, 2, 3, 4]ConnectivityInput / Output: (1/4") Instrument Input and (1/4") OutputTuner Out: (1/4") Tuner Jack (sends a constant signal for silent tuning regardless of pedal position)EXP (Expression) Out: (1/4") TRS (Stereo) Jack for controlling parameters on other effects pedals [1, 2, 3, 5]Internal Controls & FeaturesInternal Trimpot: Allows you to fine-tune the minimum heel-down value when using the pedal in expression mode.Polarity Switch: Internal switch lets you easily reverse the heel/toe polarity for expression control.Adjustable Torque: Allows you to increase or decrease the physical resistance of the rocker pedal.Band-Drive: Features Dunlop's patented Low Friction Band-Drive, tested to over one million cycles for a smooth response without breakage.
