Offer Details

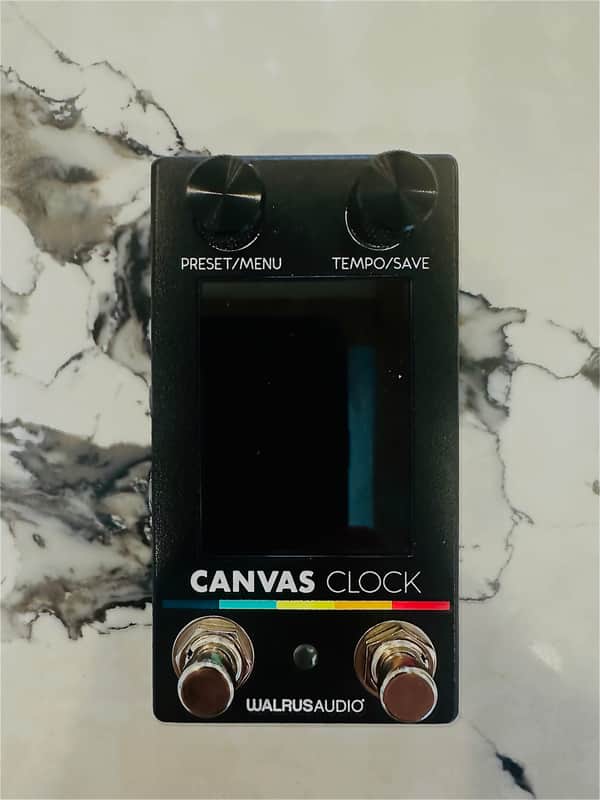

The Walrus Audio Canvas Clock is a highly versatile master MIDI and analog clock utility pedal designed to serve as the central timing command center for your entire music rig. Priced at $299.99, it bridges the gap between digital MIDI devices and analog pedals, ensuring all your time-based effects, synthesizers, and drum machines stay locked in perfect synchronization. [1, 2, 3, 4, 5]Key Specifications & HardwareVisual Display: Features a large, crisp 2.8-inch TFT LCD screen for clear visibility on dark stages or under bright lights.MIDI I/O: Equipt with standard 5-pin DIN MIDI input/output as well as space-saving 1/8-inch (3.5mm) TRS MIDI ports.Configurable Outs: Includes four 1/4-inch TRS jacks that can be individually assigned as Tempo Out (for analog tap inputs), Control Voltage (CV) Out, External Switch Inputs, or Expression Inputs.Dedicated Tools: A built-in 1/8-inch metronome click output to send audible tempos to a mixer or monitors, and a dedicated Eurorack sync jack.Power Requirements: Operates on a standard 9V DC, 300mA center-negative power supply or directly via USB-C. [1, 2, 3, 4]Performance and Preset CapabilitiesThe Canvas Clock is deceptively powerful, transforming from a simple tap-tempo device into a midweight "MIDI brain" for live performers. It allows you to save up to 128 songs with designated BPM values, which can then be organized into 10 distinct setlists. Using the onboard dual footswitches, you can instantly advance through songs on stage, pushing out synchronized tempo shifts across your pedalboard automatically. [1, 4]Advanced MIDI MacrosBeyond clock signals, the pedal features 128 customizable MIDI Macros. Each macro can send up to 15 unique MIDI Program Change (PC) or Control Change (CC) messages simultaneously when a song is recalled. This allows you to effortlessly bypass non-MIDI pedals, pull up specific presets on advanced processors, and change effect parameters on the fly without using a complex, bulky MIDI switcher. [1, 2, 3, 5]Programming & SoftwareWhile you can dive into settings directly on the hardware via the menu encoder knobs, Walrus Audio provides a dedicated Canvas Clock Editor web-app. By plugging into a computer via USB-C, you can comfortably build out your setlists, rename tracks, program macro strings, and manage firmware updates using a Chrome browser. [1, 3]
