Offer Details

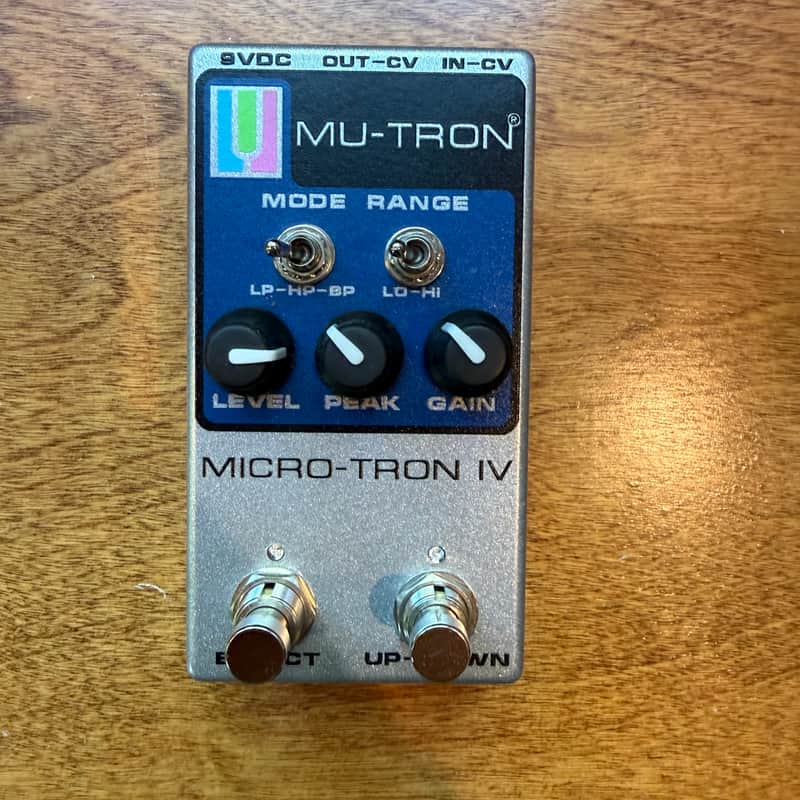

Controls:MODELP (lowpass filter) passes all the signals below the peak and attenuates signals above the peakBP (bandpass filter) passes signals only near the peak and attenuates signals below and above the peakHP (highpass filter) passes all signals above the peak and attenuates signals below the peakRANGELO sets the filter sweep to a low range for most rhythm guitar, bass and lower fret usesHI sets the filter sweep to a high range for accenting string harmonics or for up-the-neck and solo workLEVEL controls the ouput volume of the effected signalPEAK  (or Q) controls the filter audio response from very weak to very strongGAIN controls the envelope and filter audio driveON/OFF Footswitch engages or disengages the envelope filter effectUP/DOWN FootswitchUP position produces familiar “auto-wah” sound – like a heel-to-toe sweep on a wah pedalDOWN position produces a “down swoop” sound – like a toe-to-heel sweep on a wah pedalSpecifications:1/4″ Input Jack1/4″ Output Jack1/8″ CV Input Jack1/8″ CV Output Jack9V DC, 52 mA drawWeight: 1 lbsDimensions: 4.75″ x 2.5″ x 2.25″Made in the USA
