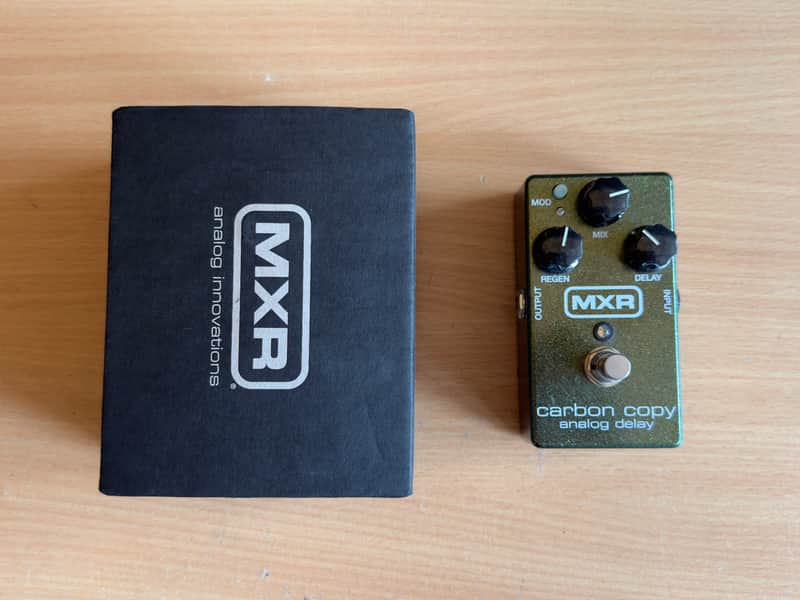

MXR CARBON COPY ANALOG DELAY - M169 - GUITAR EFFECTS PEDALThe Carbon Copy Analog Delay delivers rich, warm bucket-bridgade delay with up to 600ms of delay time and modulation.This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).THE LONG STORYGo from crisp "bathroom" slap echoes to epic, Gilmouresque delays with the MXR Carbon Copy Analog Delay.Featuring 600ms of delay time with optional modulation, and a three-knob layout that controls Delay, Mix, and Regen.In addition, there are two internal trim pots that offer user-adjustable width and rate control of the modulation for even more tonal options.All done by a completely analog audio path for authentic rich, warm analog delay—made possible only by old-school analog bucket brigade technology.True bypass.DESCRIPTION• 100% analog bucket-brigade technology• Up to 600ms of delay with switchable modulation• Internally adjustable modulation circuit• True bypassCONTROLSMOD switch toggles modulation on/off (blue LED indicates on) MIX knob controls blend of wet and dry signalsREGEN knob sets number of repeatsDELAY knob sets delay timeFOOTSWITCH toggles effect on/bypass (blue LED indicates on)POWERThe MXR Carbon Copy Analog Delay is powered by one 9-volt battery (remove bottom plate to install), a 9-volt AC Adapter such as the Dunlop ECB003/ECB003EU or a DC Brick™ power supply.DIRECTIONS• Run a cable from your guitar to the Carbon Copy’s INPUT jack and another cable from the Carbon Copy’s OUTPUT jack to your amplifier.• Start with all controls at 12 o’clock.• Turn the effect on by depressing the footswitch.• Rotate the REGEN knob clockwise to increase the number of repeats or counterclockwise to decrease it.• Rotate the MIX knob clockwise to increase the ratio of wet to dry signal or counterclockwise to decrease it. Fully clockwise results in 100% wet signal while fully counterclockwise results in 100% dry signal.• Rotate the DELAY knob clockwise to increase delay time or counterclockwise to decrease it.• Push in the MOD switch to add modulation to your delay signal. Modulation width and speed can be adjusted internally with a 2mm slotted screwdriverSPECIFICATIONSInput Impedance 1 MΩOutput Impedance 1 kΩMax Input Level +5 dBV at 500 HzMax Output Level +8 dBVNoise FloorMix at Max CW Mix at Max CCW -96 dBV-104 dBVDelay Distortion <1% at 1 kHz,-5 dBV InputDelay Time 20 ms to 600 msNoise Reduction 2:1 ratioModulation Speed 0.2 Hz to 2.2 HzBypass True HardwireCurrent Draw 26 mAPower Supply 9 volts DCRegen at max CCW, A-weighted
