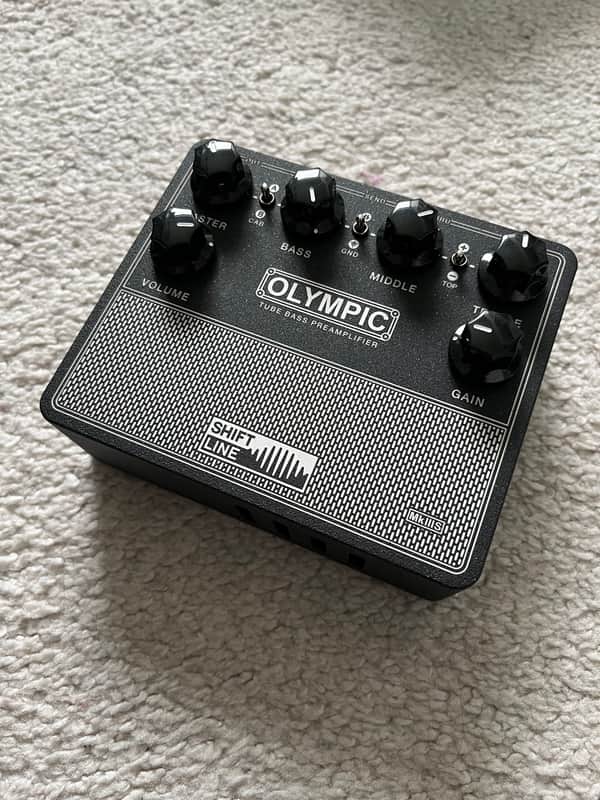

Tube bass preamplifier with IR-based cabinet simulation
http://shift-line.com/card.php?device=97
Go to the Module Detail PageIf you had an Unicorn Account you could see a chart with the price development of this module and the average price asked for this module.
Reluctant sale, if you’re viewing this, you know what it is…extremely well-appointed bass guitar tube preamp, DI, cab sim and headphone amp.As-new, boxed etc, only very light home use.Connections:IN is the signal source input. THRU is a buffered output for the unprocessed signal split from the IN jack. SEND/RETURN is a series effects loop for external processing. The SEND out can also be used as an additional output.OUT is the main output designed to connect the preamplifier to a power amplifier (RETURN or POWER AMP IN on combo amplifiers, INPUT on power amplifiers).AUX IN is an external audio input (the signal from the AUX IN is only heard through the PHONES output).PHONES is a headphones output. BALANCED OUT is a balanced output. POWER IN is a power supply input. The power requirements are 12V DC 650mA. microSD is a microSD card slot.Controls:GAIN controls input signal amplification. It can go from a crystal-clear sound all the way to a classic California-style overdrive. The BASS, MIDDLE and TREBLE knobs constitute a classic 3-band passive EQ with a mild frequency correction effect and a characteristic mid scoop at 400Hz. MASTER controls the volume of the signal coming from the OUT jack. VOLUME controls the volume of the signal coming from the PHONES and BALANCED OUT jacks.The MASTER and VOLUME knobs work independently. The TOP switch controls the signal's high frequency harmonic content. The "+" position accentuates the highs and the attack. The "-" position provides a milder sound by cutting the high frequencies. The neutral position does not affect the signal in any way. The GND switch allows to override "ground loops" that can negatively affect the signal when using XLR connections. In the lower position of the switch, the preamp's "ground" is connected to the signal receiver's "ground". In the middle position, the "grounds" are disconnected. In the upper position, the "grounds" are connected and an additional filter is used to remove interference.The optimal setting of the GND switch is selected by ear: there should be a minimum amount of 50Hz hum and interference. The CAB switch selects one of the two built-in cabinet impulses: • The "A" position selects the impulse recorded from a SUNN 200s (2х15) cabinet. • In the middle position, cabinet simulation is disengaged. • The "B" position selects the impulse recorded from an AMPEG SVT-810E (8х10) cabinet. When using a microSD card, impulses are loaded from the corresponding folder on the card. The CAB switch affects the signal from the BALANCED OUT and the PHONES OUT but does not affect the signal from the main OUT.
This offer was fetched from reverb.com. You cannot contact the seller via ModularGrid. You have to visit their site.
