Offer Details

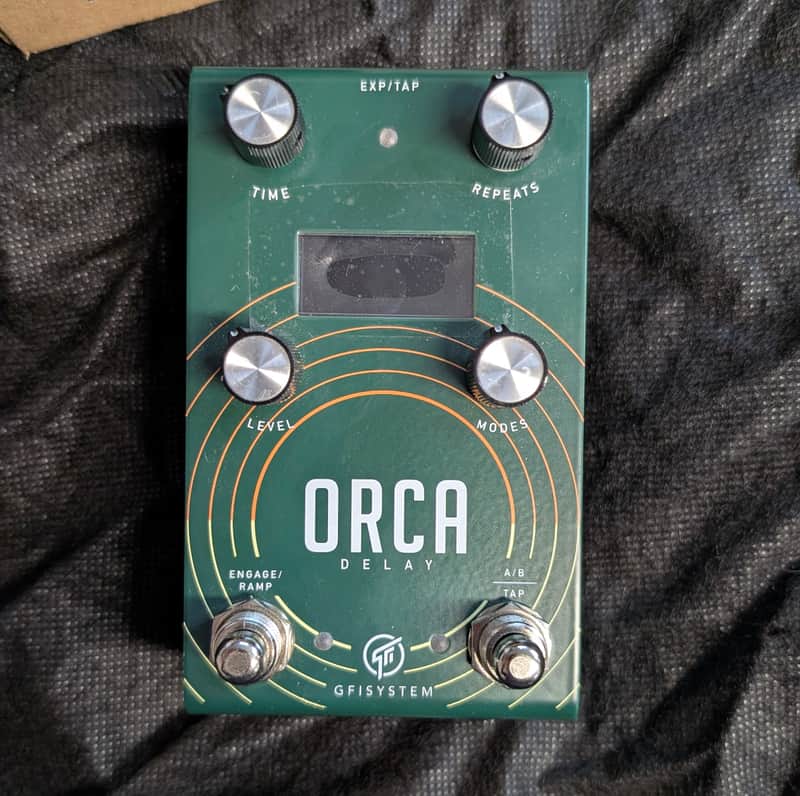

Orca packs four quintessential GFI System’s delay algorithms into a compact pedal that is straightforward and easy to use. Intuitive user interface coupled with an LCD screen makes it a breeze to navigate through Orca’s vast sonic pallete and features.

Input/Output

Orca supports both mono and stereo input/output. Mono connection is made using standard TS patch cables while stereo connections is made via TRS patch cables (a splitter-Y cable may be needed).

External control

A multi-purpose jack provides connection to an expression pedal or tap-tempo pedal.
Expression pedal input enables expressive control over the delays’ parameters, and the external tap-tempo can be used for remote tempo control.

Algorithms

Digital (max delay time : 1 second)
Tape (max delay time : 1 second)
Diffuse (max delay time : 1 second)
Ambiental (max delay time : 840 milisecond)

Key Features

4 select delay algorithms.
2 presets
Analog dry-through
4 knobs with button
Intuitive interface with LCD screen.
Mono / Stereo input and output.
Expression pedal and tap-tempo input.
Momentary action supported.

Specification

Input impedance : 1 MOhm.
Output impedance : 1K Ohm.
DAC / ADC resolution : 24 bits.
Current consumption : ~110 mA.
Weight : 0.6 Kg (1.6 lbs).
Dimension : 12 (L) x 7.2 (W) x 5.5 (H) cm
Power source : 9VDC (negative center).
