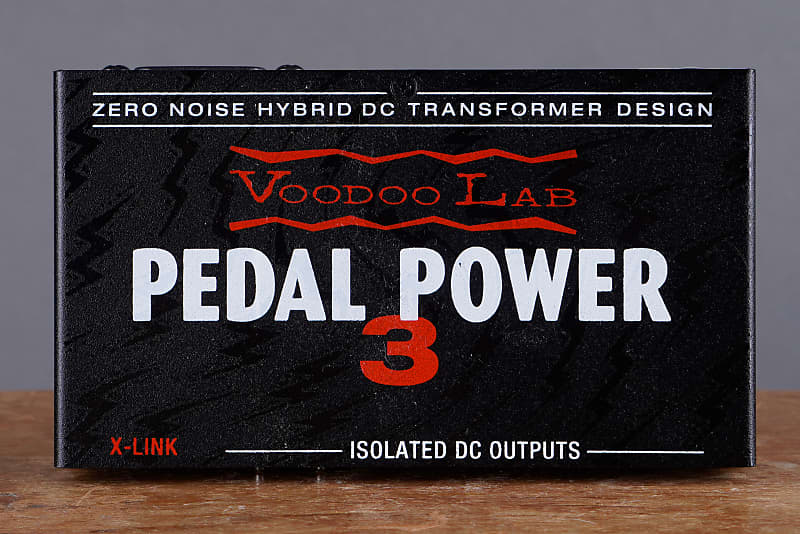

Excellent condition and in perfect working order with all 8 DC cables and power cable. This power supply shows light signs of use, but is overall very clean and functions without issue. Made in the USA!From the manufacturer:
8 isolated 500mA DC outputs • 6 x 9V, 2 x Switchable 9V/12V
X-LINK expansion ports connect Pedal Power X4 and X8 units to add up to 16 isolated outputs
Powers standard battery operated and high current DSP effects
100V-240VAC operation for international touring
Audiophile-quality power ensures pedals sound and perform their best
Zero noise hybrid DC transformer design with linear regulation
Delivers clean, consistent power even with poor AC line conditions
Ultra-lightweight, low-profile aluminum construction
Includes DC power cable kit and detachable AC line cable
Hand-built in the U.S.A.
THE POWER OF GREAT TONE
Pedal Power 3 series is the first lightweight, high current, international voltage power supply to deliver zero-noise performance. Its innovative hybrid DC transformer design features a lightning-fast 80 nanosecond polarity reversal, establishing an ultra-low noise foundation. Linear regulation and computer-optimized exotic filtering components eliminate any trace of noise, setting new benchmarks in industry-leading audiophile-quality power to unveil the hidden sonic potential of any rig. From standard battery-operated stompboxes to modern high-current DSP effects, Pedal Power 3 series combines the best of cutting-edge technology and time-tested analog engineering to ensure any pedal will sound its best.
ALL ISOLATED OUTPUTSEquipped with eight galvanically isolated DC outputs, Pedal Power 3 eliminates ground hum and unwanted interaction between pedals. Each output supplies 9V DC with two featuring a voltage selector switch for 12V DC operation. 18V and 24V pedals can be powered by combining outputs with an optional voltage doubler cable.
POWERFULEach Pedal Power 3 PLUS output delivers up to 500mA of current to supply power-hungry modern DSP effects. Audiophile specifications also ensure the musical character of the most sensitive vintage stompboxes is preserved. Each output’s wide spectrum of flexibility means less guesswork when connecting your pedals.
EXPANDABLENever run out of outputs. Pedal Power 3 features two X-LINK expansion ports, allowing you to add up to 16 isolated outputs. Simply connect a Pedal Power X4 or X8 to X-LINK to expand your power supply as your pedalboard grows. With 2A of shared current, X-LINK expansion ports can also power other 12V high-current devices like the Neural Quad Cortex® using a standard DC power cable*. No pricey adapters or complex setups taking up valuable isolated outputs are needed.
GOES ANYWHEREThe low-profile, ultra-lightweight design of Pedal Power 3 easily mounts to any pedalboard, adding an almost undetectable amount of weight. Operating at any input voltage 100V-240VAC, Pedal Power 3 makes international touring convenient and hassle-free. No voltage converters are needed. Just hit the road, plug in, and rock out.
*IMPORTANT NOTE: Due to the high current draw of the Quad Cortex® (1.8A), the second X-LINK port should remain unused when powering this device.
