EF-303

Description

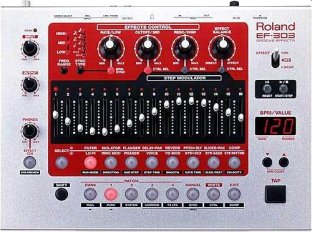

Roland EF-303 Groove Effects.  Sale includes EF-303, original power supply, printed manual and all original packaging.  Free UK shipping. This unit is in immaculate, unused condition.An exceptional effects and groove based module with a unique 16 step modulator, multiple effects, synth voice and percussion.EFFECTS 16 STEP MODULATOR Track: 1 Steps: 16 (Max) Resolution: Triplet 16th note (Internal: 480 ticks per quarter note) Tempo: Quarter note = 24-240 PATCH MEMORY 16 (Effect + Step Modulator) AD CONVERSION 20 bit linear (64 times oversampling) DA CONVERSION 20 bit linear (128 times oversampling) SAMPLING FREQUENCY 44.1 kHz FREQUENCY RESPONSE 20 Hz - 20 kHz +/- 1dB (typ.)(Input gain = Max, Input level = -20dBu) RATED INPUT LEVEL Input (Line): -20dBu Input (Phono): -55dBu Input (Mic): -50dBu INPUT IMPEDANCE Input (Line): 64k ohms Input (Phono): 64k ohms Input (Mic): 2.7k ohms RATED OUTPUT LEVEL Output: -20dBu OUTPUT IMPEDANCE Output: 600 ohms Phones: 100 ohms RESIDUAL NOISE LEVEL (Input terminated with 150 ohms, IHF-A, Typ.) Line: -88 dBu Phono: -80 dBu Mic: -82 dBu CONNECTORS Input (Line/Phono): RCA type (L/R) Input (Mic): 1/4" TRS phone (unbal.) Output: RCA type (L/R) Phones: Stereo 1/4" phone MIDI (IN/OUT) DC In for AC Adaptor GND Terminal POWER SUPPLY DC9V CURRENT DRAW 600mA DIMENSIONS 303(W) x 235(D) x 92.5(H) mm 11-15/16(W) x 9-1/4(D) x 3-11/16(H) inches WEIGHT 1.9 kg / 4 lbs 9 oz (without AC adaptor)
