Eddie Van Halen signature model
Go to the Module Detail PageIf you had an Unicorn Account you could see a chart with the price development of this module and the average price asked for this module.

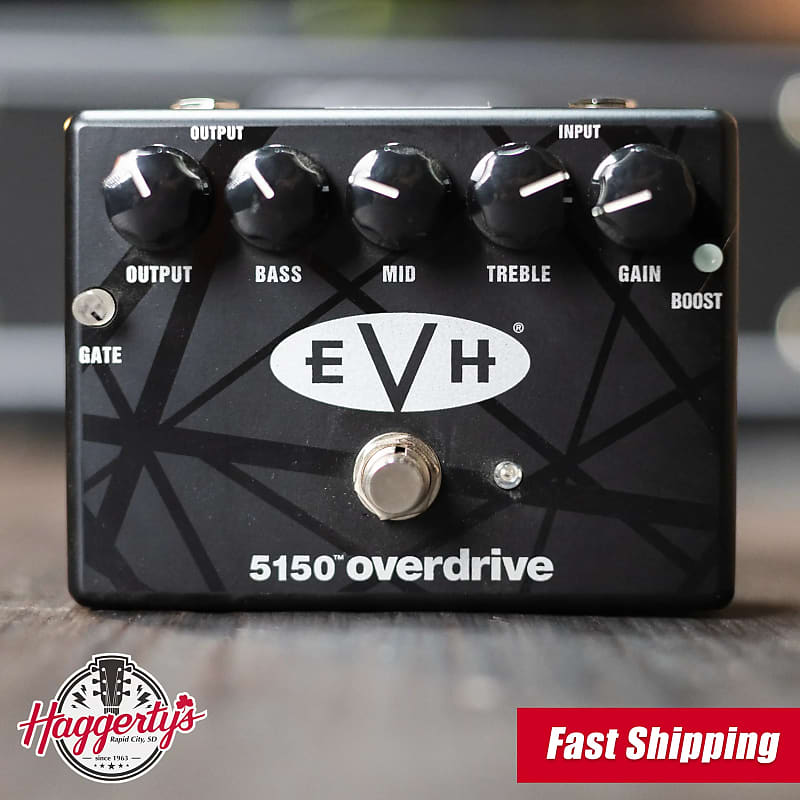

-YOU ARE VIEWING PHOTOS OF THE ACTUAL PEDAL BEING SOLD!
This used MXR will ship insured and inspected from our Rapid City, SD location. This pedal is in excellent condition, with a couple scratches and some wear on the side of the unit; please refer to photos for more details.
Buy risk free with our 14 day - full refund, less shipping, return policy. Check out our shop policies for more details.
Get ready to tap in legendary tone! The MXR EVH 5150 Overdrive Effect Pedal delivers Eddie Van Halen’s iconic high-gain tone in a versatile, pedalboard-friendly format. Available now at Haggerty’s Music, this used pedal offers a wide tonal range — from Eddie’s early “brown sound” to the aggressive, articulate gain tones of his later years. Its hand-adjusted multi-stage MOSFET circuitry delivers rich, tube-like saturation, while a full 3-band EQ lets you precisely shape your tone.
A Boost switch provides an extra kick of gain and compression for leads, and the integrated Smart Gate-powered noise gate keeps your signal tight and noise-free. With true hardwire bypass, a rugged enclosure adorned with EVH’s signature graphics, and flexible power options, the 5150 Overdrive is designed to perform on stage and in the studio.
Features/Specs
General
Effect Type: Overdrive / Distortion
Bypass: True Hardwire
Controls: Output, Gain, Bass, Mid, Treble, Gate Threshold
Switches: Boost On/Off, Effect On/Bypass (Blue LED Indicator)
Tone Controls
Boost: +6 dB Preamp Gain
Bass: ±5 dB at 30 Hz
Mid: ±5 dB at 650 Hz
Treble: ±5 dB at 10 kHz
Power
Power Supply: 9V Battery or 9V DC Adapter (Not Included)
Current Draw: 12.5 mA (Bypassed), 14.5 mA (Effect On with Gate)
I/O
Input Impedance: 740 kΩ
Output Impedance: 1 kΩ
Nominal Output Level: -22 dBV
Maximum Output Level: 0 dBV
Noise Floor: -76 dBV (Gate Open) / -93 dBV (Gate Closed)
Condition
Status: Used, Excellent Condition
