A-100 Low Cost Case 6U / 84HP (A-100LC6 / A-100LC6V)

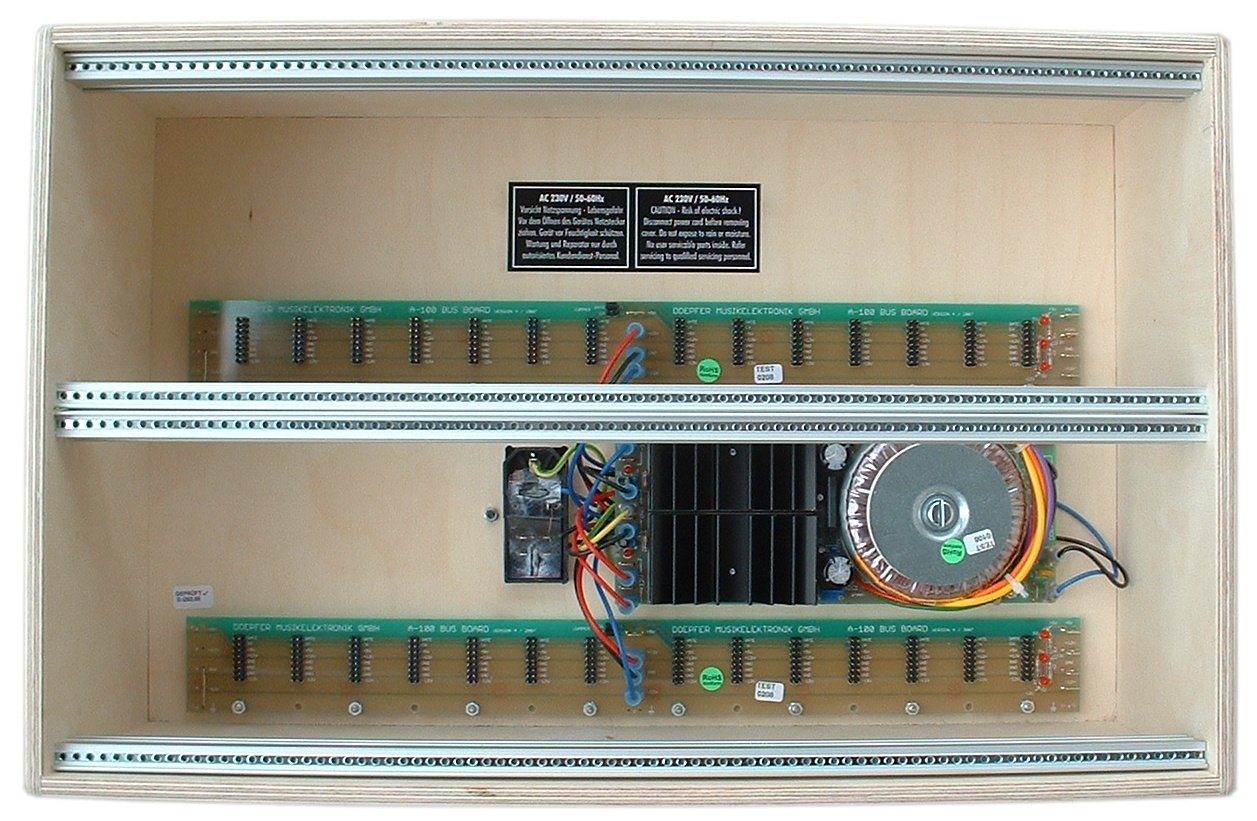

This is an economical version of the A-100 suitcase. It is made very simple without front cover, without the metal rails and corners of the suitcase version described above. In other respects the low cost suitcase is identical to the suitcases described above (i.e. it includes the A-100 PSU2/PSU3 and two bus boards).

The case is made of raw wood without laquering. The case can be varnished by the customer in any desired color e.g. by means of a spray can.
It is also available with black coating: A-100LC6V

Measures:
outside: approx. 445 x 275 x 160 mm
inside: 2 x 84 HP x 3 U (two bus boards), useable depth for A-100 modules: approx. 80 mm in the power supply area (bottom right), resp. approx. 110 mm in the remaining area (measured from inner side of the front panel until end of the pc board of the module)

Quantity of bus boards: 2

Weight (without modules): about 4 kg

Maximum Output Current:
with built-in A-100PSU2 (until about end of 2015): +12V/1200mA, -12V/1200mA
with built-in A-100PSU3 (since about early 2016): +12V/2000 mA, -12V/1200mA, +5V/4000mA
