Dimensions
67 mm wide
112 mm high
Current Draw
75 mA / 9 V DC / Negative Center
Price
$167 Price in €

This Pedal is currently available.

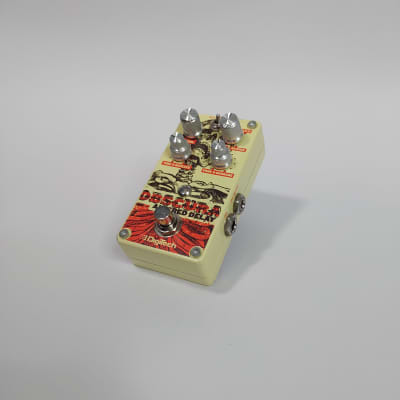

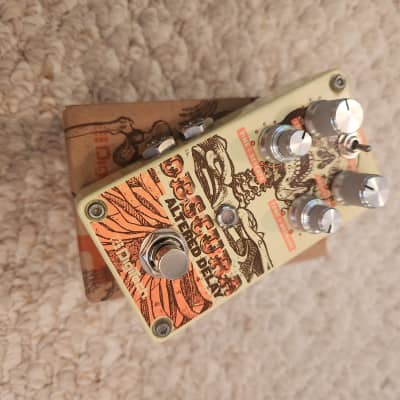

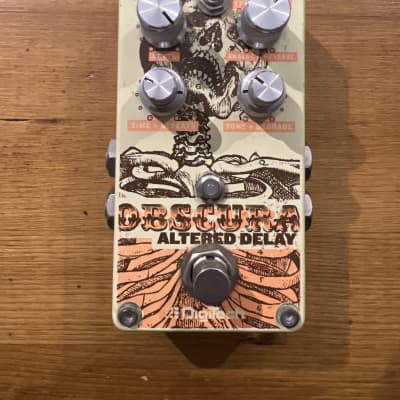

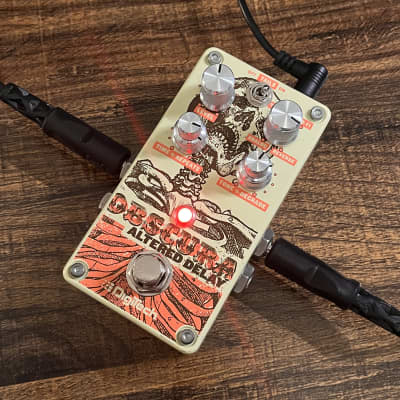

Obscura Altered Delay

Altered Delay Pedal

The Obscura Altered Delay from DigiTech allows you to turn your delays upside down and inside out. The Obscura’s four delay types can be darkened, degraded and distorted on the fly with the stacked Tone and Degrade controls. Combine these controls with the Obscura’s Repeat/Hold feature and lose yourself in long, trippy, gurgling repeats or backwards-manipulated sonic mayhem. In addition to its Tone and Degrade controls, the Obscura features independent Level, Delay Mode and stacked Time and Repeats controls. Complimenting those versatile controls, the Obscura offers four excellent-sounding Analog, Tape, Lo-Fi, and Reverse types, Tap Tempo mode with Beat Divisions, Stereo Inputs/Outputs, a Delay Tails On/Off Switch and True Bypass circuitry. With its compact size and vacuum-style footswitch, the Obscura furthers DigiTech’s evolution in pedal design. We’ve put years of experience into every detail of its mechanical and sonic blueprint. The Obscura uses a 9V DC power supply to easily integrate into your existing pedalboard.

Output : Separate Left and Right ¼" Unbalanced (Tip-Sleeve)
Output Impedance :
- Effect on = 1 kΩ;
- Effect off = True hardwire bypass

Input Separate : Left and Right ¼" Unbalanced (Tip-Sleeve)
Input Impedance :
- Effect on = >1 MΩ (stereo), >500 kΩ (mono);
- Effect off = True hardwire bypass

http://digitech.com/en/products/obscura


Ø 4.50 (2 Votes) Average Rating
submitted May 25th 2017, 10:06 by pedalgrid | last Change Jun 24th 2021, 16:43 by Y_HL
