This Pedal is discontinued.

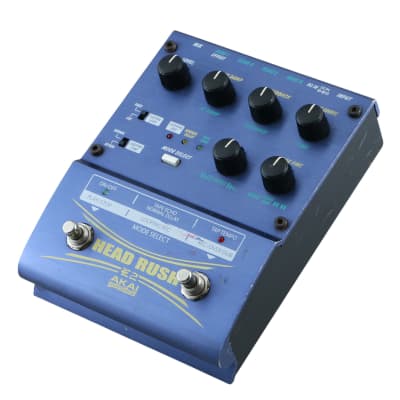

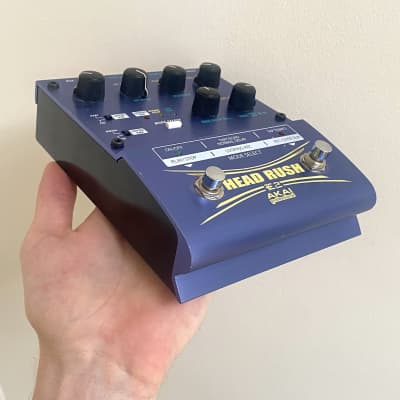

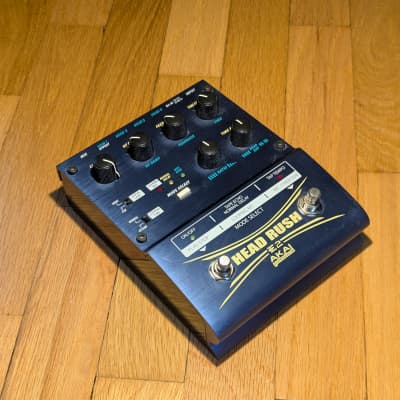

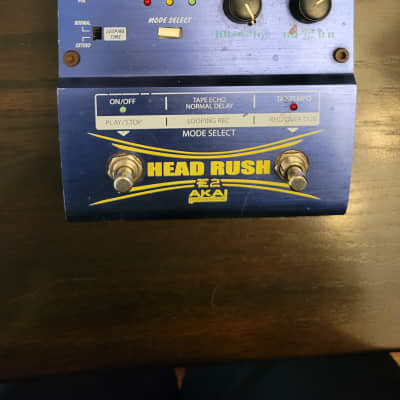

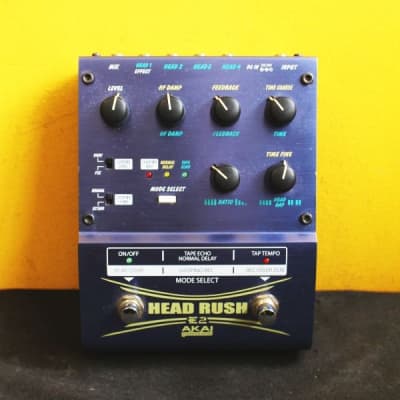

Delay, tape echo, and a looping recorder
16-bit Digital Delay - Delay time from 0.5ms to an astonishing 23.8 seconds maximum
Real-time delay control - sets delay time by tapping footswitch twice
Tape Echo mode with four individual outputs for each head
Looping Recorder with overdub mode - Powerful tool for solo performances
Selectable Fixed or Adjustable Loop Level.
Effects pedal for guitar and bass players, DJs, vocalists, and other musicians
Delay, tape echo, and looping recorder
Selectable delay options: feedback, gain, and echo rate
Simulates a four-head analog tape machine
Control decay and spacing between virtual-tape heads
Creates complex multiple delays and repeats
Signal from each virtual head on individual output for multiple returns
Record and overdub layer after layer of sound with Looping Recorder
Outstanding build quality
Modes
Normal delay, tape echo, and looping
Resolution: 16bit
Sample Rate:
Normal : 44.1kHz
Extend: 29.4kHz
Maximum Time:
Delay: 23.8 seconds
Tape Echo: 5.9 Seconds
Looping: 23.8 seconds, 11.9 seconds overdub (normal), 17.8 seconds overdub (extended)

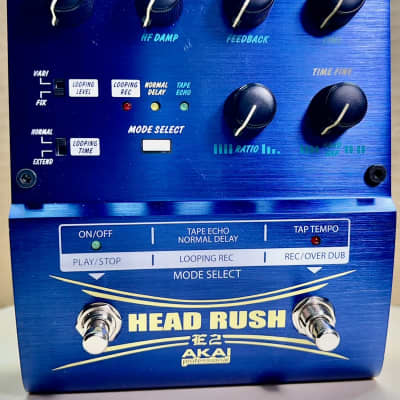

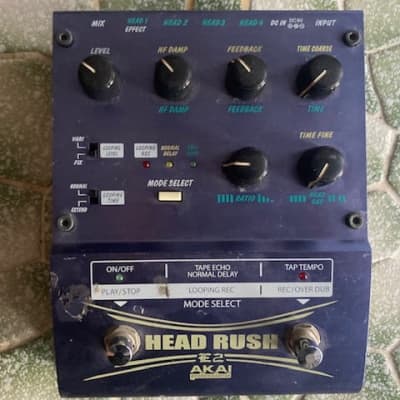

Controls
Level, HF damp, feedback, time coarse/time, time fine/head gap, ratio
Switches
Mode select, loop level, loop time, footswitch x 2
LEDs
Mode x 3, effect on/off x 1, tempo x 1
Connections:
Input: 1/4" jack. Input impedance 500kOhms or more
Outputs: Mix, effect/head 1, heads 2-4: 1/4" jack x 5, output impedance 1kOhms or less
9V DC in (160mA)
Dimensions:
5.51" x 7.22" x 2.56" (W x D x H)
(140mm x 183.5mm x 65mm) (W x D x H)
Weight: 2.54lbs (1.15kg)
