OAM Time Machine

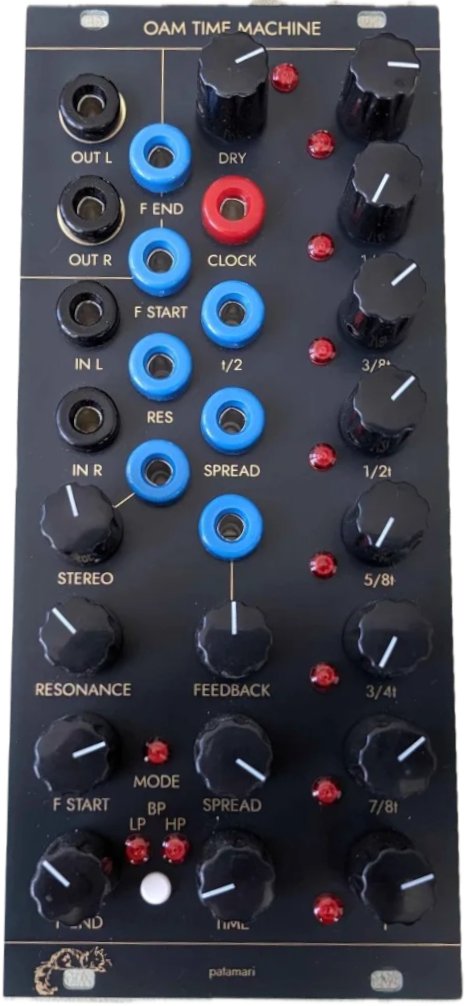

Patamari's Time Machine & Timo Rozendal Expander Port

https://oamodular.org/products/time-machine
https://modulargrid.net/e/olivia-artz-modular-time-machine
manual

An eight tap stereo delay

Time Machine is a tactile interface for mixing together 8 delay lines with an input signal. At least that was the plan. We made a prototype and got like 300% funded on kickstarter, so we got to work.

As the DSP engine was refined a sonic character emerged that howls like guitar feedback while granulizing like the grey goo at the end of the universe. We leaned into this. The resulting module can create clocked rhythmic glitch effects, reverbs, chaos, and ego-death.

• 24-bit audio in/out (-5V to +5V)
• 16-bit CV control (-5V to +5V)

https://github.com/timorozendal/time-machine/
https://modulargrid.net/e/timo-rozendal-oam-time-machine-expander

expander that adds stereo panning and 4 kinds of filters per tap with resonance

This is an expander for the Oliva Artz Modular Time Machine (the original version or my slim redesign)
This active expander adds:
* 4 knobs and cv inputs that are summed and control various things
* stereo offset mode A: odd inputs are panned left, even inputs are panned right
* stereo offset mode B: right delayline has an offset (also works with clocked mode)
* filters per delay tap, you can choose lowpass, highpass, bandpass and a second bandpass based on the 4MS SMR resonator code. You can set the frequency for the first tap and the last tap and it interpolates in between.
* You can also change the resonance, this is shared for all taps.

All the info (and the firmware) is in the github repo
https://github.com/timorozendal/time-machine/
