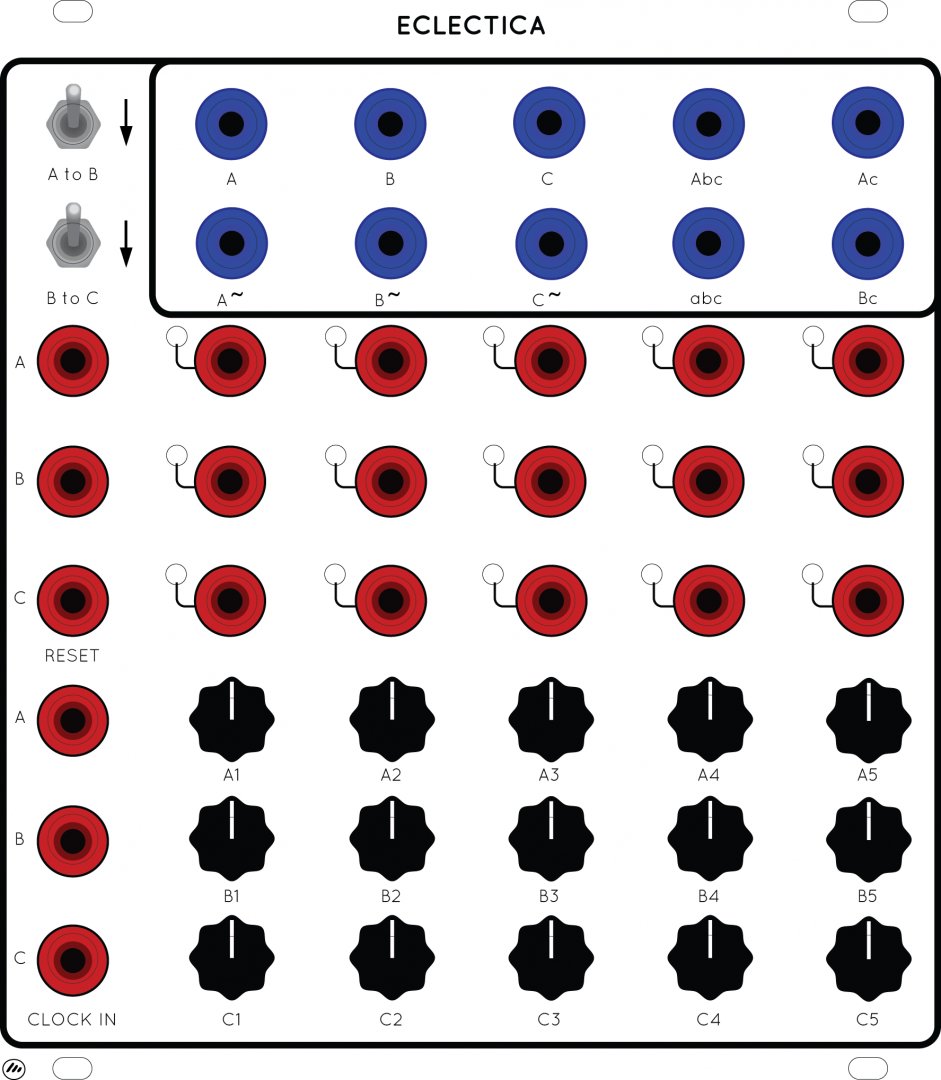

Eclectica is a nested 3 row, 5 stage sequencer that can be clocked separately or internally.
Eclectica is a nested 3 row, 5 stage sequencer that can be clocked separately or internally. When it is clocked internally via the switches top left, row 2 will only start when row is at the end. Row 3 will then only start when row 2 is at the end. 10 CV outputs, 15 trigger outputs, 3 clock and reset inputs.
Specs:
10 CV outputs:
A / B / C go from 0v to 5v
A~/ B~/ C~ go from -5v to +5v
Abc = 100% of A, 50% of B and C
abc = 50% of A, B and C
Ac = 100% of A and 50% of C
Bc = 100% of B and 50% of C
A to B + B to C switches for estafette clocking internally
3 Reset inputs
3 clock inputs
15 trigger outputs
15 potentiometers that acts at the same time as an attenuator for the unipolar outputs and as a attenuvertor for the bipolar outputs.
