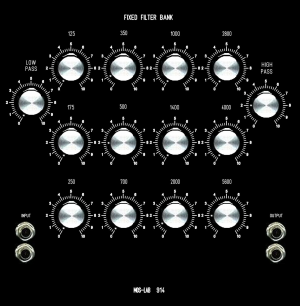

The 914 module is a non-voltage Controlled modifier wich emphasizes or reduces the gain of the center frequency bands on each of the 12 Pass-band filters, in addition to the cutoff points set by Lowpass and highpass filters at either frequency extreme.

Frequency resolution is 1/2 Octave. Frequencies are ::
125Hz / 175 Hz / 250 Hz / 350 Hz / 500 Hz / 700 Hz / 1000Hz / 1400Hz / 2000Hz / 2800Hz / 4000Hz / 5600Hz

Le module 914 est composé de 12 filtres Passe-Bande à pente de 12dB/octave, d'un filtre Passe-bas et Passe-haut de 24dB/Octave.

La résolution pour la banque de filtre est de 1/2 octave, et se compose comme ceci :

125Hz / 175 Hz / 250 Hz / 350 Hz / 500 Hz / 700 Hz / 1000Hz / 1400Hz / 2000Hz / 2800Hz / 4000Hz / 5600Hz

https://www.mos-lab.com/914

• 70 mA +15V
• 70 mA -15V
• 0 mA 5V

This module is currently available.
