FM Oscillator

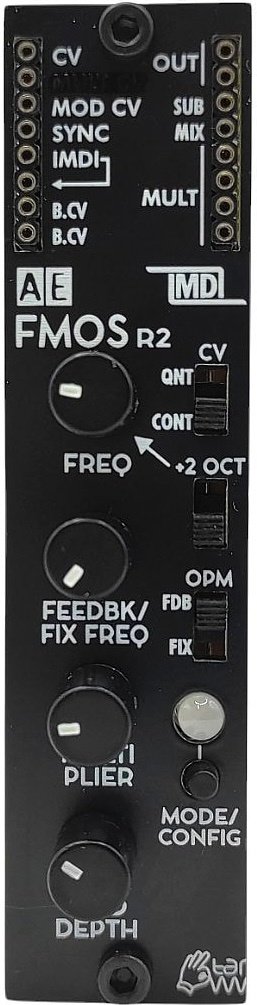

FMOS R2 is a FM oscillator, and the successor of the discontinued FMOS module with a lot of new features!
FMOS R2 is basically a 2-operator FM synthesis sound generator, with the classic parameters MULTIPLIER for the modulating operator and MOD DEPTH for controlling the amount of FMing of the carrier operator.
Beyond this basic functionality, FMOS R2 offers following extra features:
* Additionally to the basic sinewave operator waveform, FMOS R2 has five additional waveform combinations for the carrier/modulator waveform, resulting in a more rich overtone spectrum
* The FEEDBACK control adds feedback the carrier/modulator chain, adding more variety to the sound spectrum
* The modulator can optionally be set to fixed frequency, especially useful for synthesizing metallic, inharmonic sounds
* A sub-oscillator output provides a square wave one octave lower
* The MIX output provides a mix between the FM sound and the sub-oscillator.
* Pitch is either controlled by a 1V/octave CV or IMDI, the "modular MIDI" introduced by tangible waves
* Modulation depth can be modulated by CV
* All parameters can also be controlled via IMDI, with a number of MIDI controllers.
All this with a nice portion of 8-bit charm ;-)
