Duo-BOP Dual Analog Drum

Analog Drum

The Duo-Bop Analog Drum module from Lower West Side Studio combines a pair of Barton Musical Circuits BMC018 drum modules in a single width module that is a definite must-have in the percussion toolkit of any modular synthesizer.

What’s better than one Analog Drum Module in a single width space? Why TWO of course!

The Duo-Bop Analog Drum Module from Lower West Side Studio does just that; We’ve combined two Barton BMC018 Analog Drums in a single width panel and added a couple of handy features.
The BMC018 Analog Drum produces a Synare® / Syndrum® 80’s quality percussive sound with voltage controllable pitch.
Processing the Duo-Bop through filters, delays or other effects creates some stunning percussive sounds. From deep bass drums to high “pew-pew” hits and everything in between the Duo-Bop does it all .
Layering sounds simple with the Duo-Bop. Using a single trigger each channel can be tuned separately providing extra depth and richness to percussive sounds.

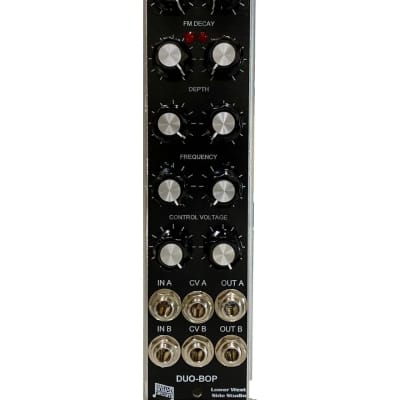

The Duo-Bop Analog Drum comes in a 1U width with 19mm knobs controlling 10 potentiometers. Visual feedback of Amplitude and FM decay is provided through 2 LEDs per channel.
The module operates at +/- 15V and comes with a Synthesizers.com style power connector.
