Dimensions
1 Slot
Price
$1,250 Price in €

This Module is currently available.

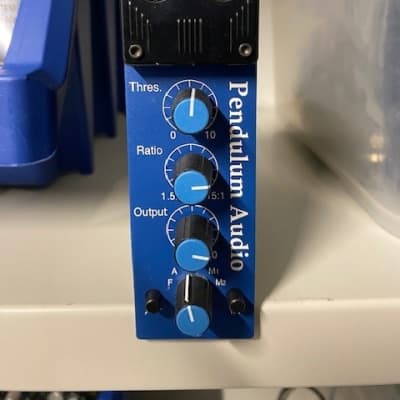

OCL-2 Compressor/Limiter

Since its introduction in 1998, the Pendulum OCL-2 Compressor/Limiter has become a modern classic. In fact, the OCL-2 changed the way users think about opto compression! Our custom opto cell provides fast, invisible compression without the artifacts and suggish response inherent in vintage designs.
The new OCL-500 has the same compression circuit as the OCl-2, but uses a transformerless class A solid-state gain makeup circuit in place of the tube stage. The result is clean, transparent compression that can be used to shape the dynamics of any source while preserving its tone. Like the OCL-2, the OCL-500 has a wide variety of time constants and dynamic control to optimize the compres- sion characteristics, including a sidechain hi-pass filter.
OCL-500 Specifications
Format: API® 500 series standard, fully compatible Input Impedance: 20K!, balanced
Output Impedance: less than 50!
Max. Output Level: +27dBu, balanced
Threshold: off to 20dB of gain reduction at +4dBu Ratio: 1.5:1 to 15: 1, soft knee
Output: Off to +20dB of makeup gain
Max. Gain Reduction: 27 dB
Frequency Response: +/- 1 dB from 10Hz to 95kHz
Noise Level: better than 78dB below +4dBu, 0-30kHz
Total Harmonic Distortion: less than 0.01% with no compression

Time Constants
Position Type
F Fast
A Average
V1 Vintage 1
V2 Vintage 2
M1 Manual 1 M1 Manual 2
Description
Peak-averaged by the opto-cell
RMS response
Three-stage multi-slope (auto) Slower three-stage multi-slope (auto) Medium attack, medium release Slower attack, slower release

Average and Vintage 1 are the presets in the Quartet. Vintage 2 is the Vintage preset in the Quartet II.
M1 and M2 are manual attack and release settings
often used in the OCL-2.

http://www.pendulumaudio.com/OCL500%20Brochure.pdf
