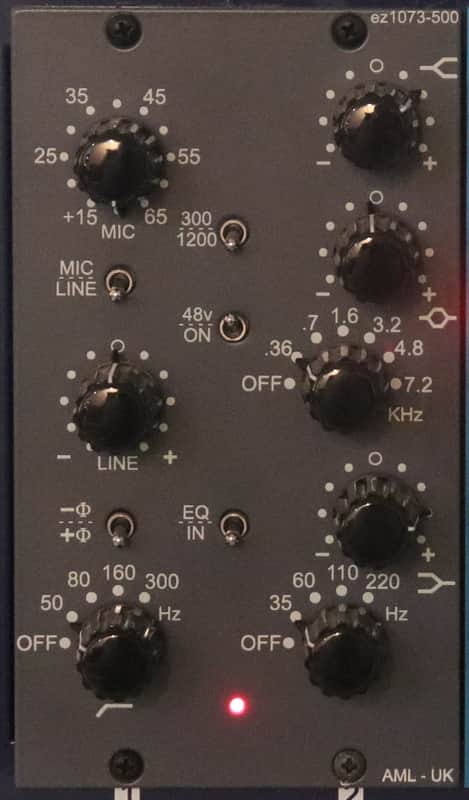

AML ez1073-500 500-Series Preamp & EQThe AML ez1073-500 is a Class A Microphone Preamp and EQ module which occupies two slots in a 500-Series rack.The AML ez1073-500 is a fully built with Carnhill transformers and inductors to achieve its distinctive classic sound, this high-end hand-built British module provides an affordable solution for the modern cost-conscious studio.AML ez1073-500 500-Series Preamp & EQ FeaturesClassic 3 stage (Class A) amplifier designAll discrete component (no surface mount devices)Entirely hand assembled and tested in the England to exacting quality standardsPhantom and polarity switchesThe output is duplicated on both of the output XLRsStainless steel chassisAML ez1073-500 500-Series Preamp & EQ SpecificationsMic Input: Carnhill transformer balanced (Classic VTB9045) +10dB to +65dB gain, rotary switchable in 5dB steps and switchable 300/1200 Ohm impedance inputLine Input: Carnhill transformer balanced (Classic VTB9046) - 20dB to +20dB, rotary switchable in 4dB steps (centre 0dB), 10k Input ImpedanceLine Output: Carnhill transformer balanced (Classic full size output transformer)EQ/Filter Stage: 3 inductor (Class A) amplifier designHF (12kHz) +/- 16dB gain continuously variableMF (switchable; 360Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz) +/- 16dB gain continuously variableLF (switchable; 35Hz, 60Hz, 110Hz & 220Hz) +/- 16dB gain continuously variableLow Pass Filter (switchable; 50Hz, 80Hz, 160Hz & 300Hz) -18dB per OctaveTotal current consumption 110mA (per unit)The UnitThis unit is in great condition and comes with the original box and all packaging. I've fully tested it and everything works well as expected.ShippingI will ship in 1 business day via Australia Post standard parcel.
