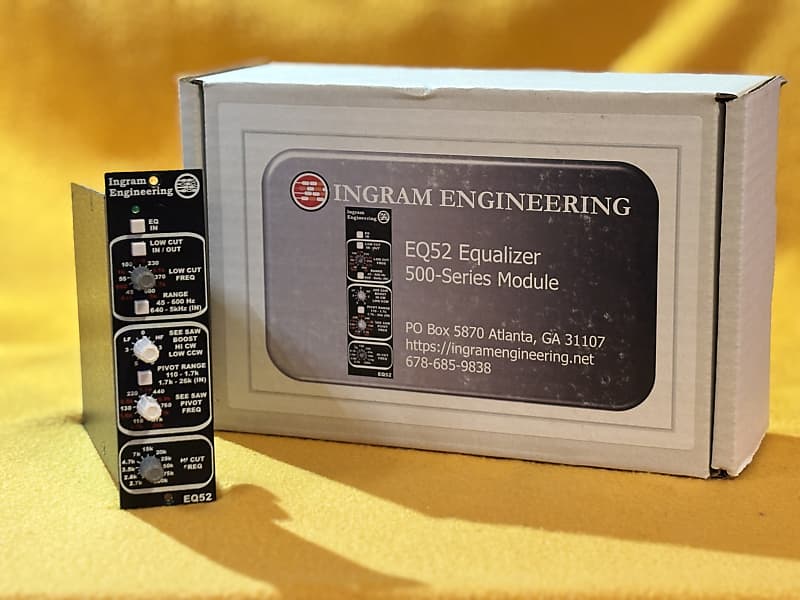

Ingram Engineering EQ52 Low Cut High Cut See-Saw Filter
https://ingramengineering.net/eq52.html
Go to the Module Detail PageIf you had an Unicorn Account you could see a chart with the price development of this module and the average price asked for this module.
I'm pairing down and listing items I no longer use. Reach out if you have any questions and thanks for stopping by.Borrowed from the web...The Ingram Engineering EQ52 500-Series Equalizer is a 500-series equalizer module that contains extremely versatile and musical sounding low cut, high cut, and see-saw filters. The unique see-saw filter contains a combined low and high frequency control that allows broad frequency response adjustments with a single control knob. These key filter functions are provided with a simple and intuitive user interface.The unit features differential input and output. Both input and output can operate in differential or single-ended, unbalanced modes. A high current, cross-coupled active output buffer mimics the behavior of a transformer, providing constant gain for balanced or unbalanced operation, when either the positive or negative output signals are grounded. Therefore, the output can drive differential or single ended output with no extra user configuration needed.The simple controls and circuit layout belie the finely tuned and expertly engineered design. Extremely high input common mode rejection capability is realized, even down to critical power supply frequencies. High qualify film caps, low distortion resistors and excellent quality integrated active stages realize a high headroom, low noise, and low distortion equalizer with superb audio quality that is ideal for individual tracks or for mixing and mastering stereo signals when the modules are used in pairs.Ingram Engineering EQ52 500-Series Equalizer FeaturesLow Cut Filter: 50 Hz to 5 kHz in two ranges, continuously adjustableSee-Saw Filter: simultaneous bass boost / treble cut and vise versaSee-Saw pivot frequency switchable from 120 Hz to 26 kHz in two ranges8 dB max See-Saw cut / boostHigh Cut Filter: 3 kHz to >200 kHz continuously adjustableLow and high cut filters use gentle and musical -6 dB / octaveBalanced input and outputUnity gain, with output driving either balanced or unbalancedInput impedance: 48k Ohms differentialOutput impedance: 100 Ohms differentialMax input level: +20 dBuTHD: 0.002 % Typ at +20 dBuCMRR: 90 dB Typ at 60 HzNoise: -96 dBuIngram Engineering EQ52 500-Series Equalizer IncludesIngram Engineering EQ52 500-Series Equalizer
