Dimensions
42 HP
33 mm deep
Current Draw
40 mA +12V
20 mA -12V
? mA 5V
Price
$129 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

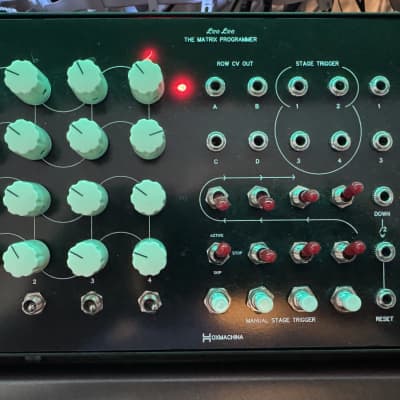

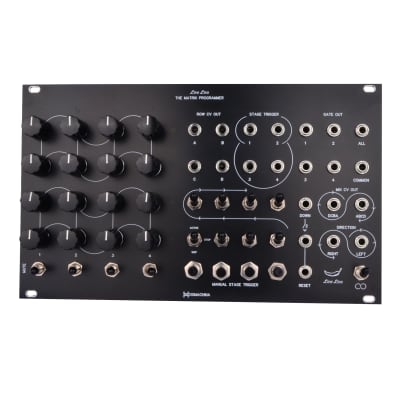

Matrix Programmer / Sequencer

Analog matrix sequencer based on Serge's Programmer from the 70s, here added more complex functionality that can be used as 4x4 cv channels, 2x8 or even 2x16 cv channels, plus also the ability to cascade through the front panel switch to activate it (connects to another with a 10pin cable through the back panel), also adds total control over each stage in both directions (skip, stop, active and mute), operates under three different clock inputs: Left, Right and Down can be used from a precise sequencer to a generative and random mode as well with manual button triggers for each step.

Available at Siam Modular

https://www.siammodular.com/voxmachina-leo-leo-matrix-sequencer-pcb-kit-or-pre-built


submitted Jul 27th 2023, 11:57 by voxmachina | last Change Sep 4th 2023, 13:54 by voxmachina

3 Users are observing this
