Dimensions
10 HP
20 mm deep

Module is a 1U tile in Intellijel format

Current Draw
10 mA +12V
10 mA -12V
0 mA 5V
Price
$79 Price in €

This Module is currently available.

Specs are approved by the manufacturer

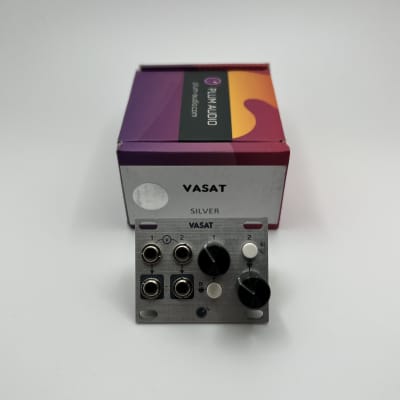

Dual channel expandable Mixer / Attenuverter / Offset

VASAT is - Dual channel expandable Mixer / Attenuverter / Offset

• VASAT can process two channels of audio or CV.
• Polarity push buttons can configure knobs to work as attenuators or as attenuverters.
• Unconnected inputs are normalized to an internal precision voltage source which can produce
either a +2.5V, +5V, +7.5V or +10V.
• VASAT outputs are limited to -/+ 10V to protect against clipping.
• VASAT outputs are daisy-chained allowing channels to be mixed.
• VASAT is expandable – Several units can be chained together to get a bigger mixer.

1U / Intellijel, 10HP
