This Module is currently available.
a bridge to the outer world

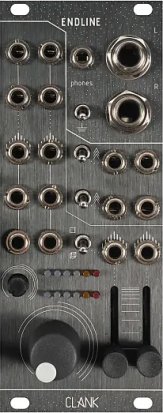

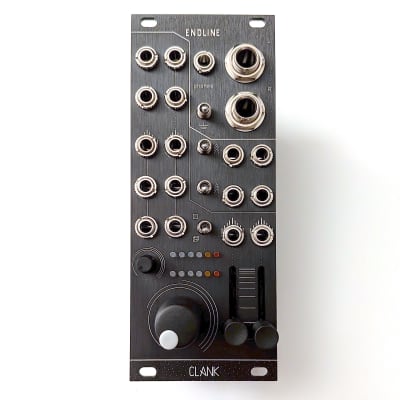

Endline is the ultimate solution for your audio chain needs. This high-quality 10hp module offers four stereo channels of summing, sub-mix capabilities, two sends and returns, a headphone output, and transformer-balanced outputs. Not only does it process audio with incredible accuracy and clarity, but with its compact 10hp size it also fits seamlessly into your setup. With Endline, you have the opportunity to enhance your audio processing capabilities and enjoy top-of-the-line sound quality that will elevate your listening experience.
Endline is an upgraded version of our previous "SUM" module. It is designed to receive signals from mixers, sub-mixers, and voices, combine them, and output the result.
With this new version, we have implemented several new features, including an output section and dual mono or single stereo sends with two dedicated returns.
The sends and return levels can be adjusted to perfectly interface your modular with your external pedals.
Moreover, a headphone output with a dedicated level control is included.
It features the best-in-class IC that can output 1.5W at 32ohm.
With its 128dB signal-to-noise ratio and 112.5 THD, it is not the average headphone output you can find in the Eurorack world.
The line outputs are transformer-balanced (30Hz to 35kHz) and are driven from Burr-Brown OPA.
Apart from all those mixing/send-return possibilities, this makes Endline one of the cleanest and most high-end options you can choose in the Eurorack to interface with the world.
Lastly, despite its transformers, the device is only 40mm deep.
