Dimensions
28 HP
25 mm deep
Current Draw
380 mA +12V
182 mA -12V
0 mA 5V
Price
$420 Price in €

This Module is currently available.

Specs are approved by the manufacturer

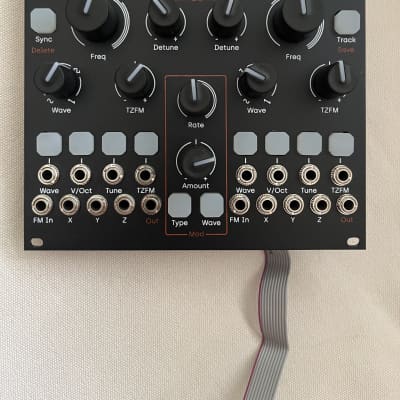

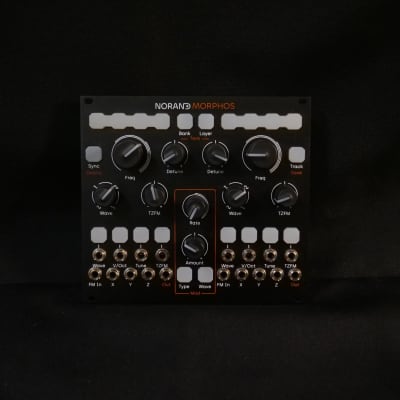

Dual Morphing Analog oscillator

-3D Morphing-

MORPHOS’ preset strips are groups of four specially developed FSR sensors
that can precisely detect vertical, horizontal and pressure information from
the pressure distribution of your finger.
3D morphing allows you to create entirely new soundscapes by morphing
between multiple user presets, in three different dimensions. All at the reach
of your fingertips, it opens up a whole new world for live jamming!

-The Synthesis-

The two all-analogue, digitally controlled Oscillators provide very pure
harmonics, 4 waveform types on a continuously variable potentiometer and
extremely stable TZFM (Through Zero Frequency Modulation). Thanks to its
digital brain, an active calibration system allows it to track over 10 octaves,
even at high TZFM ratio.

-Contextual Modulation-

Morphos inherits Norand Mono’s Contextual Modulation technology, adapted
for the modular world. It is possible to modulate every parameter under CV.
The module provides 3 Modulation Modes - Attenuverter, Modulator and Ping
Envelope - allowing you to modulate timbre and create drum sounds.

https://norand.io/

https://norand.io/morphos


Ø 4.00 (4 Votes) Average Rating
submitted Apr 4th 2022, 16:20 by Norand | last Change Nov 3rd 2022, 14:28 by Norand
